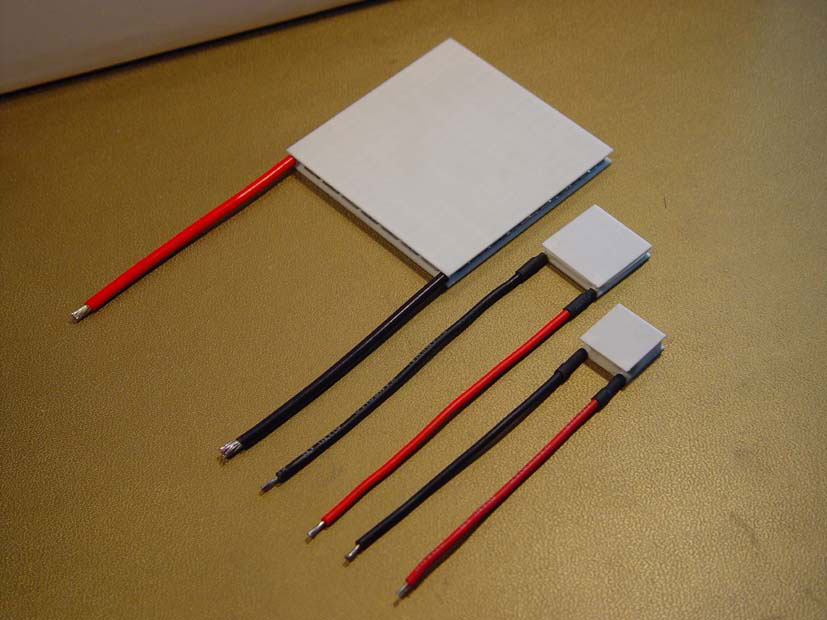

Thermoelectric Cooling Module, Peltier Cooler
Thermoelectric Cooling Module, Peltier Cooler, TEC1-19924T125Item Code / Model Number:
TEC1-19924T125
Thermoelectric Cooling Module, Peltier Cooler
TEC1-19924T125 Specification
Hot side temperature is 25 C,
Imax: 24A,
Umax: 25V
Qmax:360W
Delta T max: 68 C
ACR:0.75 Ohm
Size :62x62x3.55mm
Ceramic Material: Alumina (Al2O3)
Solder Construction: 138ºC, Bismuth Tin (BiSn)
Operation Tips:
Max Operating Temperature: 125 ºC
Do not exceed Imax or Vmax when operating module.
Please consult Beijing Huimao Cooling Equipment Co.,Ltd modules for moisture and corrosion protection options.
Solder tinning also available on metallized ceramics
Hot side temperature is 25 C,
Imax: 24A,
Umax: 25V
Qmax:360W
Delta T max: 68 C
ACR:0.75 Ohm
Size :62x62x3.55mm
Ceramic Material: Alumina (Al2O3)
Solder Construction: 138ºC, Bismuth Tin (BiSn)
Operation Tips:
Max Operating Temperature: 125 ºC
Do not exceed Imax or Vmax when operating module.
Please consult Beijing Huimao Cooling Equipment Co.,Ltd modules for moisture and corrosion protection options.
Solder tinning also available on metallized ceramics
- Place of Origin:
- China
- Brand:
- Huimao
- Unit Price:
- USD 24
- Price Terms:
- FOB Beijing
- Other Price Terms:
- T/T in advance
- Packing:
- paper box
- Payment Terms:
- T/T
- Delivery Time:
- 10 days
- Min Order Quantity:
- 10
- Standard / Certificates:
- ROHS
- Keywords:
- thermoelectric cooling module, tec module, peltier cooler
