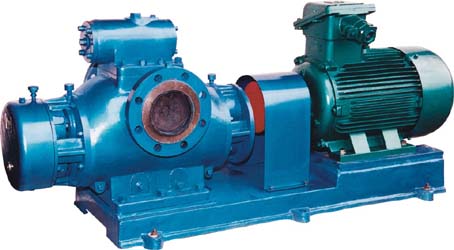

Twin Screw Pump
Twin Screw Pump, 2HMItem Code / Model Number:
2HM
Capacity: 0.5-2500m3/h
Pressure: 0.1-5.0Mpa
Viscosity: 0.5-100,000mm2/s
Temperature: -30–300C Rotation: 750rpm, 1000rpm, 1500rpm, 3000rpm
Medium: Various liquid no matter lubricative or non-lubricative, even paste
Certificate: ISO9001: 2000, CCS, BV, GL, KR, RINA etc.
Construction: Horizontal, vertical, Trolley structure
Safety: Explosion-protection, water-protection, safety valve, alarming sensor.
Product Features: Wide range of application Self-priming Pumped capacity proportional to speed Constant flow on varying pressures and volumes
Direct drive without speed-reducer possible For almost all media and fluids & High viscosities possible Low pulsations Dry running possible Pumping elements-simple to replace Compact construction
Application Range: Can be used in oil industry, marine industry, chemical industry, food industry, save and transfer industry.
Inner structure: 1. Adopting external bearing which lubricated individually, so can deliver various medium no matter lubricating or non-lubricating.
2. Adopting timing gear, there is on metallic contact between rotating parts, so a long service life is ensured. And there is no dangerous even dry running in a short time.
3. Adopting circular valve, when outlet pressure is higher than working pressure and the circular valve will open, some medium through the circular valve and come back the inlet of the pump or saving can. At the same time, the twin screw pump work in all pressure for bringing down torque.
4.When working, drive screws, driven screws form sealed chamber together with the surrounding pump casing, the medium in the sealed chamber is shifted axially and completely continuously from the suction side to delivery side of the pump as the shafts turn. Because the capacity of the seal casing doesn't change in working, the pump transfers liquid without pulsation.
Pressure: 0.1-5.0Mpa
Viscosity: 0.5-100,000mm2/s
Temperature: -30–300C Rotation: 750rpm, 1000rpm, 1500rpm, 3000rpm
Medium: Various liquid no matter lubricative or non-lubricative, even paste
Certificate: ISO9001: 2000, CCS, BV, GL, KR, RINA etc.
Construction: Horizontal, vertical, Trolley structure
Safety: Explosion-protection, water-protection, safety valve, alarming sensor.
Product Features: Wide range of application Self-priming Pumped capacity proportional to speed Constant flow on varying pressures and volumes
Direct drive without speed-reducer possible For almost all media and fluids & High viscosities possible Low pulsations Dry running possible Pumping elements-simple to replace Compact construction
Application Range: Can be used in oil industry, marine industry, chemical industry, food industry, save and transfer industry.
Inner structure: 1. Adopting external bearing which lubricated individually, so can deliver various medium no matter lubricating or non-lubricating.
2. Adopting timing gear, there is on metallic contact between rotating parts, so a long service life is ensured. And there is no dangerous even dry running in a short time.
3. Adopting circular valve, when outlet pressure is higher than working pressure and the circular valve will open, some medium through the circular valve and come back the inlet of the pump or saving can. At the same time, the twin screw pump work in all pressure for bringing down torque.
4.When working, drive screws, driven screws form sealed chamber together with the surrounding pump casing, the medium in the sealed chamber is shifted axially and completely continuously from the suction side to delivery side of the pump as the shafts turn. Because the capacity of the seal casing doesn't change in working, the pump transfers liquid without pulsation.
- Place of Origin:
- China
- Brand:
- Hg
- Packing:
- Standard wooden packing
- Payment Terms:
- L/C;T/T;Cash;D/P
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- ISO9001: 2000, CCS, BV, GL, KR, RINA etc.
- Keywords:
- oil pump, screw pump, twin screw pump
