Wall cladding system by laminates wooden panel

Smart way for interior wall cover with new designed wall cladding system that simplify installation process, more flexibility on design and materials option, provide a cost-efficient wall decorative solution for architectural projects.

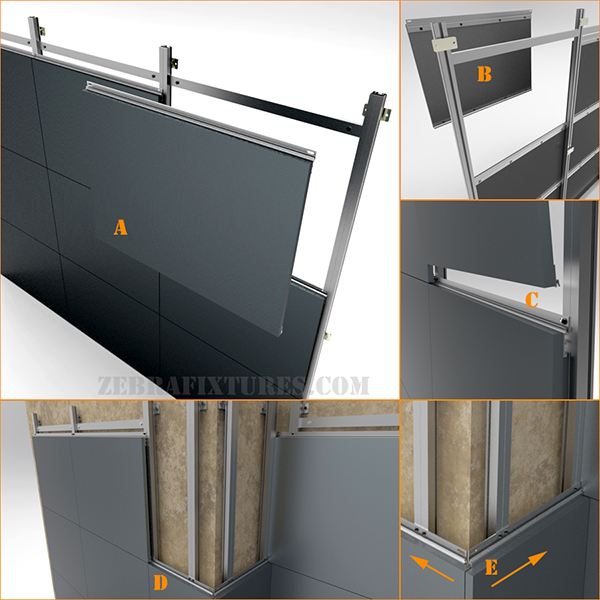

Specification (refer to photo)
A. Baseboard material by plywood or MDF with various laminates material options by HPL, veneer or fireproof panel at standardized sizes: standard 600x600, 600x800, 600x1200 mm and available custom sizes.
B. Smart designed aluminum framing system provides an efficient way of installation.
C. Snap profiles system installed on upper and lower edges on panel back side that giving the easiest way for panels matching quickly and locked with taping screws, then seal the gaps with silicone sealant.
D. Turning corner can be pre-fabricated base on drawing or cut and trim base on actual site condition.
E. Direction of installation always begun from outer corner to inner corner, cut edge is hidden inside the inner corner.

Features
Offsite pre-fabricated modules ready for installation that minimize on-site operation overhead. Discard the old way of labor intensive work.

Advantages
Enhance productivity and competitiveness.

Benefits
Great saving overall construction cost on material/shipping/handling/installation/lead-time.

Business mode
We provide consultation, technical design, custom build for tender project. Installation available as optional service for local market, supply only for export market and include technical support.

Target customer groups
Building Developers, Construction, interior design and contractor companies.

*Please note this is not a standard product for general trade, we work in term of tender project provide pre-fabricated modular fixture solution.
