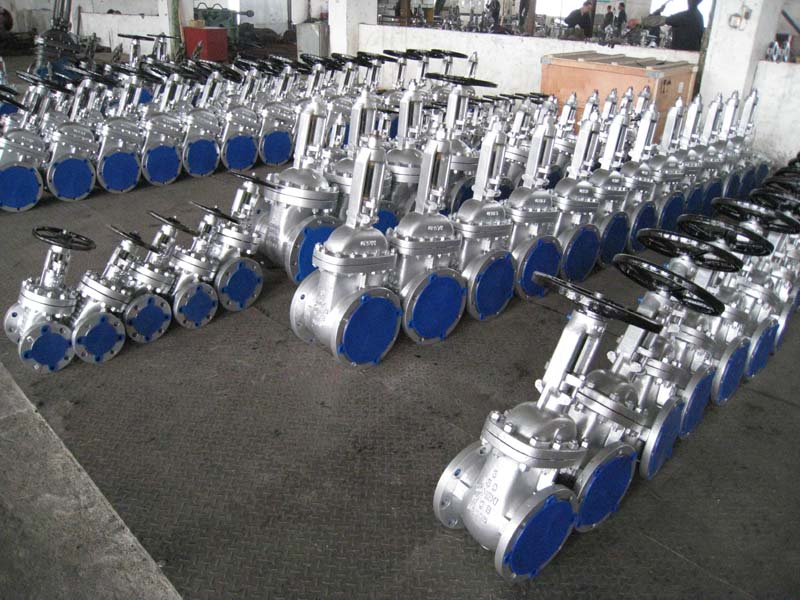

Cast Steel Gate Valve

DGV cast steel gate valves are widely used in the industries of oil, chemical, medicine-made, fertilizer, electrical power, etc. as
on/off control valves for passing or cutting off the medium. The gate is designed as a wedge elastic gate of easy seal and wearing
compensation, seal surface is overlaid with wearing resistant hardened alloy; the seat seal surface overlaid with wearing
resistant hardened alloy to be matched with gate seal surface; the stem is specially treated to ensure its strength, rigidity, corrosion resistance and abrasion resistance. DGV gate valve is with reliable seal, safe use and easy operation. Valves are available in a
complete range of body/bonnet materials and trims, which are used for the medium of water, steam, oil product, nitric acid, acetic
acid, etc.

Applicable Standard
Design Standard: API 600, BS1414, DIN3352
Face to Face: ASME B16.10, EN 558, DIN3202
End Flange: ASME B16.5, ASME B16.47, DIN2533
Buttwelding Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Products Range
Size: 2" ~ 60"(DN50 ~ DN1500)
Rating: ANSI 150lb ~ 2500lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic

Design Features
Full port design
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of Solid or split wedge
Renewable or welded seat
Extended stem design for low temperature
Flanged or butt-welding ends
