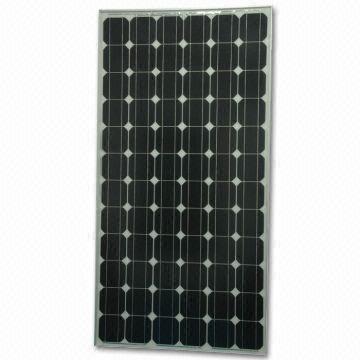

Solar Panel

Model: CY-TD150
Maximum power: 150W
Power tolerance: ±5%
Maximum power voltage Vm :36V
Maximum power current Im: 4.17A
Open circuit voltage Voc: 42.48V
Short circuit current Isc : 4.58A
Maximum system voltage: 1000 V DC
Cell efficiency : 16%
Module efficiency : 15%
Solar cells type and arrangement : Monocrystalline 125x125mm 72pcs(6x 12pcs)
Cable type ,diameter and length :4m㎡ TUV certified 900mm
Type of junction box: TUV certified junction box
Type of connector : Compatible type lll
No.of bypass schottky diode: 3pcs
Temperature coefficient of Pm: -0.45%/℃
Temperature coefficient of Voc :-0.35%/℃
Temperature coefficient of Isc: +0.05%/℃
Standard test conditions: Am1.5 25℃ 1000W/㎡
Temperature range: -40℃～85℃
Size of module : 1580*805*50 mm
Weight of module : 16Kg
Packing: 2pcs/carton
Outer carton size: 1620*845*150mm
Gross weight/Carton : 35Kg
Certificate: CE IEC61215 ROHS
