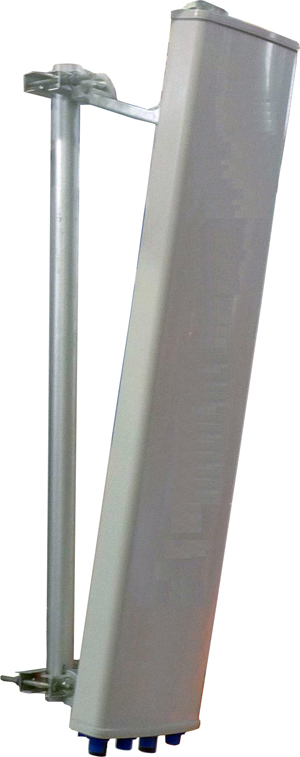

900mhz & 1800mhz 18dbi 65deg Sector Antenna

Model DS918G1865X
Frequency 870-960 MHz, 1710-1880MHz
Polarization ± 45º
Horizontal Beam Width 65 deg
Vertical Beam Width 10 deg (900MHz)
7 deg (1800MHz)
Electrical Down Tilt 0/3/6/9 deg
Gain 17 dBi x 2 (900MHz)
18 dBi x 2 (1800MHz)
VSWR <1.5 : 1
F/B > 26 dB
Cross Pol > 13 dB
Isolation between port > 30dB
Intermodulation IM3 < -107 dBm
Max Power 200 W
Impedance 50 Ω
Mechanical Specification
Radome Material PVC / Fiberglass UV Protection
Lightning Protection Direct Ground
Connector 7/16DIN- female x 4
Weight
15 kg
Size 2200x305x155mm
Mount Pole Diameter 40-80mm
Wind Loading (Frontal) 60m/s
