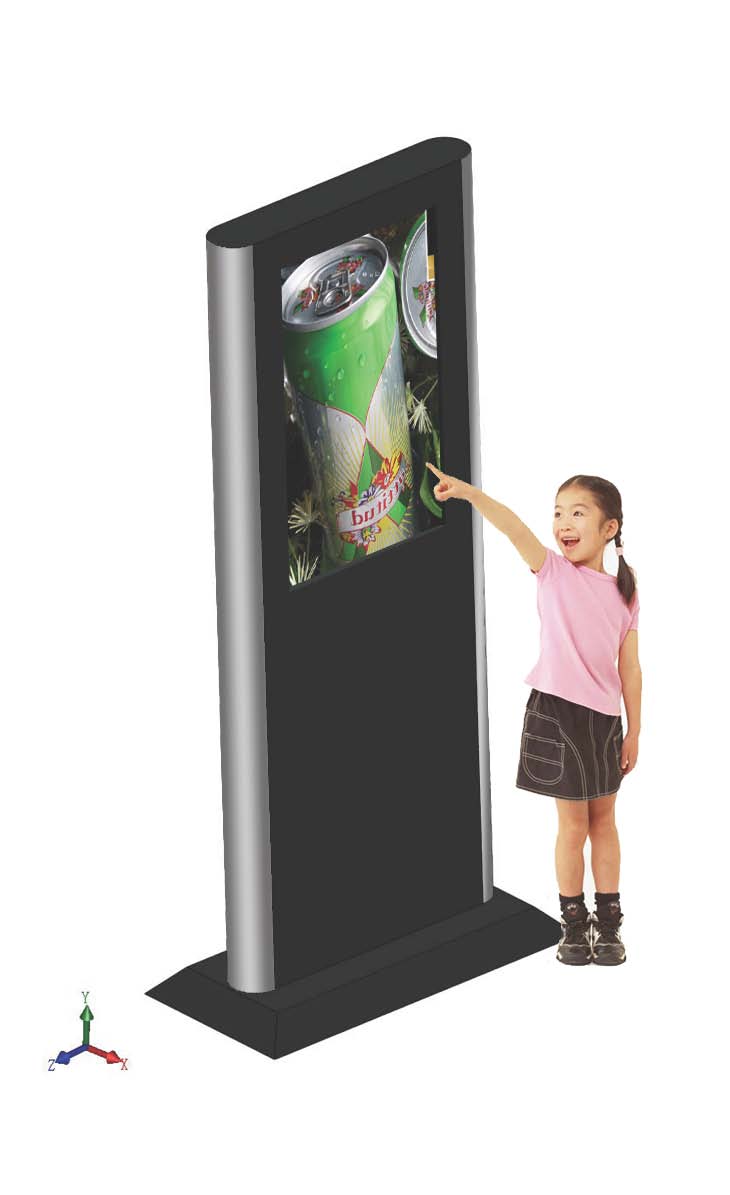

touch information kiosk

RioTouch Touch information kiosk is a computer based terminal or display that is used to provide information or services using a finger or pen as a mouse for desired information. Kiosk systems are being used in a variety of applications, typically in a public place, including information directories, customer self-service terminals, electronic catalogs, internet access terminals, tourism guides, and more.


Touch Technology: Infrared Touch
Touch Screen Size: 32” 42 "

Features:

Gesture control.
Finger touch.
Wireless(Optional)
All-in-one standing information kiosk.
HDMI-(High-Definition Multimedia Interface) keep the original high-resolution voice and image signals transmission
Highly durable – Made for high volume use with a scratch resistant screen and protection against dust and fluids.
Anti-vandal touch screen –The touch screens are made from extra-tough glass
Flexible Media Content—provide easy access for quick media changes and service


Specifications

General

Touch Technology IInfrared Touch
Performance

Resolution(Interpolation)
4096*4096

Linearity Error
1.5mm

Response Speed
<20ms

Mechanical

Input Method
Finger, gloved hand, or opaque object

Touch Times
Unlimited

Touch Activation Force
No minimum touch activation force is required with IR touch technology

Minimum Touch Object
5mm

PC Performance

Processor
Intel ATOM N330 1.6G

Memory
Kingston DDR2 2G/800MHz

Graphics card
NVIDIA ION Geforce 9400M

Hard drive
320G/5400RPM

II/O ports HDMI+DVI+S/PDIF、2*USB2.0
Environmental

Temperature
　
Operating: -20°C ~ 70°C

Storage: -40°C ~ 85°C

Relative Humidity
　
Operating: 90%(noncondensing at max 40°C)

Storage: 90%(noncondensing at max 40°C)

Altitude
Up to 3,000m

Life Time
At least 7-year

Electrical

Operation Voltage
Typical +DC 5V, +4.75V to +5.25V

Power Supply
USB, power ripple max.200mV rms

Power
<2W, operating current<200mA

Agency Approvals
CE, FCC Class B


Application:

Building (for building and companies publish advertise.)
Marketplace ( for mall shops to publish advertise )
Station (for people to find their right direction.)
School (for school clubs to publish advertisement, forecast latest activities and live shows )
Hall, Show room, Lift.
Scenic Spots ( for tourism guides)
And more.
