Roll Forming Machinery

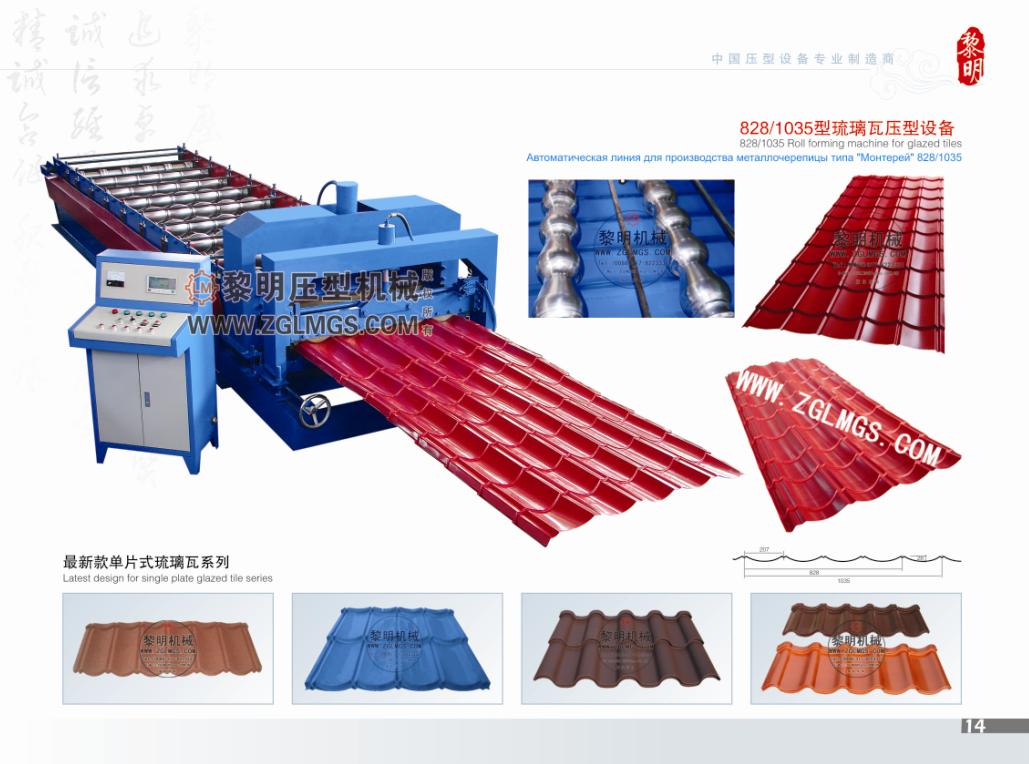

The colored steel tile produced by this line look beautiful, elegant and noble.they are widely usde as the roof of garden---like factory, hotel ,exhibition center, villa, civil construction, etc.

A：Technical parameters:
material spec:colored steel sheet,galvanized steel sheet
Thicknedd of coil sheet:0.4-0.8mm
Main motor powder:7.5 KW
Forming speed:7-10m/min
Hydraulic pressure:10-12 Mpa
Quantity of stands:about 15 groups
Hydraulic station power:3 KW
Controlling system:PLC
Index error of length:10m-2mm
Total weight: about 6.5 T
Voltage: 380V 3 phase 60Hz or at buyer`s requirement
B:Material of main equipment:
roller material: high grade No.45 forged steel,plated hard chrom on the surface of roller with thickness 0.05mm
Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
Cutter blade:Cr12 mould steel with quenched treatment
The panel surface no scratch
Frequency converter
PLC:Computer adopt PLC
Computer operating board adopt OP320A,china

C:working flow:
Decoiling the sheet--sheet guiding ----measure length-cutting the panel--panels to the supporter
