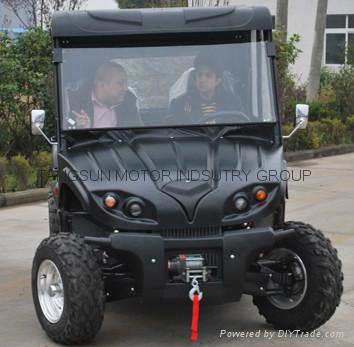

Utv

ENGINE INFO (DAIHATSU) ENGINE
Engine type Three-Cylinder ,in lined,Water cooled,four-storke,swirl type Displacement 993CC
Cooling Air cooled + water cooling
Output Standard Power 25kw
Max torque 54Nm/r/min
Max speed * 55 km/h
Climbing ability *40°
Ignition C.D.I
Starting system Electric start
Battery *12V-60Ah
Engine oil *15W-40
Gear oil *15W-40
Fuel type 0# -10# -20#
CHASSIS ETC.
Transmission 5 speeds
Driveline shaft
Driving wheel 4WD-2WD
Suspension,front/rear Front INDEPENDENT SUSPENSION
Rear INDEPENDENT SUSPENSION
Brakes,front/rear *Front disk Rear disk
Tires,front/rear *Front AT25x8-12 Rear AT25x10-12
Fuel capacity/type *25L
Weight,G.W. 775kg
Max load *680kg
DIMENSIONS
Wheelbase *2050mm
OA L*W*H *2950mm*1580mm*1830mm
Height to seat *850mm
Min ground clearance *295mm
