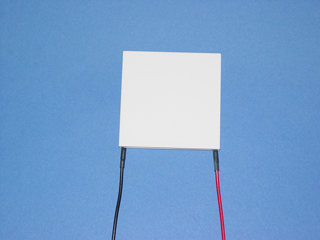

Sell Tec1-12706 Modules

TEC1-12706 Modules
Couples: 127
Imax:6A
Umax:15.4V
Qcmax:53.3W
ΔTmax:69℃
Dimensions:40*40*3.8mm

1.The operating temperature: 125℃, 150℃, 200℃.
2.The length of lead wire could be fixed by clients, the common length is 150mm.
3.The sealing of TE modules: Unsealing, Silicon, Epoxy, the normal sealing is silicon gel.
4.Both sides of TE modules can be Lapped with high accuracy.

TEC1-12708 Modules
Couples:127
Imax:8A
Umax:15.4V
Qcmax:71.1W
ΔTmax:69℃
Dimensions:40*40*3.4mm


TEC1-12730 Modules
Couples:127
Imax:30A
Umax:15.4V
Qcmax:266.7W
ΔTmax:69℃
Dimensions:62*62*4.8mm

TEC1-19908 Modules
Couples:199
Imax:8A
Umax:24.1V
Qcmax:111.5W
ΔTmax:70℃
Dimensions:40*40*3.5mm

TEC1-26316 Modules
Couples:263
Imax:16A
Umax:31.8V
Qcmax:300W
ΔTmax:70℃
Dimensions:50*50*3.2mm

TEC1-28820 Modules
Couples:288
Imax:20A
Umax:35V
Qcmax:403.2W
ΔTmax:70℃
Dimensions:62*62*3.9mm.
