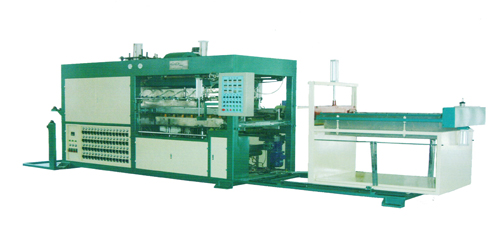

Automatic High-speed Vacuum Forming Machine
Automatic High-speed Vacuum Forming MachineContinuous Selling Item
Automatic High-speed Vacuum Forming Machine
Automatic High-Speed Vacuum Forming Machine could pack products of various specifications by vacuum forming. I t is suitable for plastic material like PVC ,PET, PE, PP, HIPS ,ABS etc. This machine is used widely on industry like electrical equipment, commodity, medical, cosmetic, leechdom, tour, textile, artwork etc.
Technical Data:
Model: GS70/122A, GS70/122B, GS70/122C
Forming height: mm, 150, 150, 120
Forming length: mm ,1222 ,1222, 1222
Forming width: mm 760, 760, 710
Producing speed: pcs/hour ,200-720, 200-720, 200-720
Electrothermal-furnace power: kw, 30, 30, 30,
Motor power: kw, 4, 4, 4
Vacuum-pump power: kw, 3, 3, 3
Air compressor: M3/min, 2.0, 2.0, 2.0
The whole power: kw, 37, 37, 37
Power supply: AC380V, AC380V, AC380V
Machine size: mm, 7660X2720X2730, 7660X1720X2730, 6800X1470X2680
Machine weight: kg, 3200, 3200, 3200
Technical Data:
Model: GS70/122A, GS70/122B, GS70/122C
Forming height: mm, 150, 150, 120
Forming length: mm ,1222 ,1222, 1222
Forming width: mm 760, 760, 710
Producing speed: pcs/hour ,200-720, 200-720, 200-720
Electrothermal-furnace power: kw, 30, 30, 30,
Motor power: kw, 4, 4, 4
Vacuum-pump power: kw, 3, 3, 3
Air compressor: M3/min, 2.0, 2.0, 2.0
The whole power: kw, 37, 37, 37
Power supply: AC380V, AC380V, AC380V
Machine size: mm, 7660X2720X2730, 7660X1720X2730, 6800X1470X2680
Machine weight: kg, 3200, 3200, 3200
- Place of Origin:
- China
- Brand:
- Gemc
- Packing:
- one in wooden case
- Payment Terms:
- ;T/T
- Min Order Quantity:
- 1set
