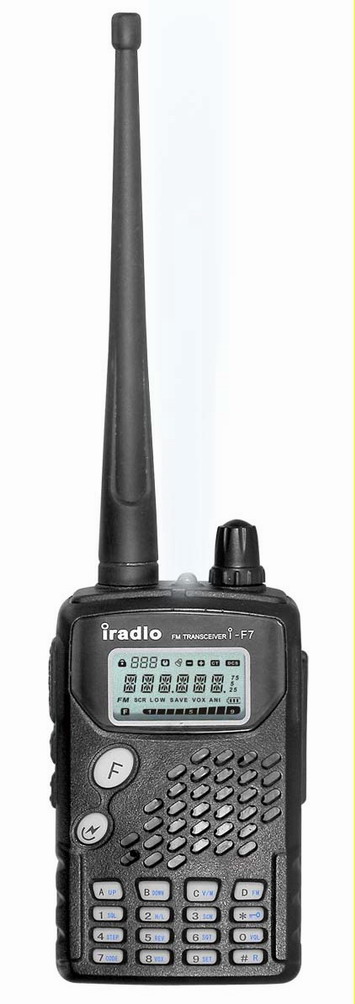

Iradio I-f7 Two Way Radio

• Scrambler
• DTMF encoding
• VHF: 5W
• UHF: 4W
• With three color LCD backlight display
• 1,500mAh Li-ion battery
• Built-in 50 CTCSS and 104 DCS, end-tone elimination
• With emergency alarm and FM radio
• Technical specifications:
o Frequency range: 136 to 174, 400 to 470MHz
o Channel capacity: 128
o Operating voltage: 7.4V Li-ion
o Working temperature: -20 to +60 °C
o Frequency stability: ± 2.5ppm
o Size (without antenna): 60 x 95 x 32mm
• Transmitter:
o RF power output:
 Low: 1W
 High: 5W
o Modulation type: F3E
o Stray radiation: >60dB
o Adjacent channel power: >55/65dB
o Maximum frequency deviation: ± 5KHz
o Audio distortion: <=5%
o Moculation character: ± 3dB
• Receiver:
o Sensitivity (12Db SINAD): 0.2μV
o Adjacent Channel selecivity: >=60dB
o Noise respond: >=60dB
o Audio power output: 500mW
o Audio distortion: <=5%
o Standby current: ≥25mA
