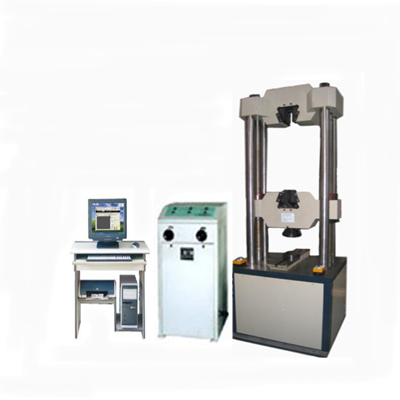

Electro-hydraulic (microcomputer Screen Display) Universal Testing Machine

Main technical parameter
Spec.
WEW-300B
WEW-600B
WEW-1000B
Max. test force(KN)
300
600
1000
Effective measuring range(KN)
6-300
12-600
20-1000
Indicating value accuracy
(better than indicating value)
±1%
±1%
±1%
Max. distance between
tensile jaws(mm)
550
600
650
Max. distance between upper
and lower platens(mm)
450
450
450
Size of upper and lower
platens(mm)
Φ160mm
Φ160mm
Φ160mm
Clamping range of
round specimen(mm)
Φ13-26;
Φ26-40
Φ13-26;
Φ26-40
Φ13-26;
Φ26-40
Clamping range of
flat specimen(mm)
0-15
0-15;15-30
0-15;15-30
Max. clamping width
of flat specimen(mm)
70
70
70
Main machine dimension(mm)
740*550*2000
740*550*2100
840*580*2200
Console dimension(mm)
600*500*1200
600*500*1200
600*500*1200
