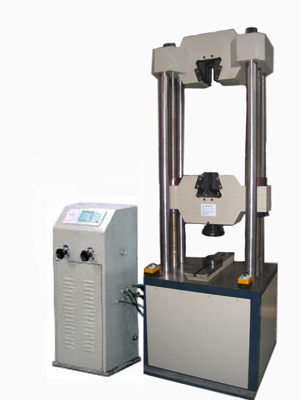

We(s)series Electro-hydraulic (digital Display) Universal Testing Machine

Main technical parameter:
Spec. WE(S)-100B/300B WE(S)-600B WE(S)-1000B
Max. test force(KN) 100/300 600 1000
Effective measuring range(KN) 4%-100% 4%-100% 4%-100%
Indicating value accuracy
(better than indicating value) ±1% ±1% ±1%
Max. distance between tensile jaws(mm) 550 600 650
Max. distance between upper
and lower platens(mm) 450 450 450
Size of upper and lower
platens(mm) Φ160mm Φ160mm Φ160mm
Clamping range of
round specimen(mm) Φ6-13;
Φ13-26 Φ13-26;
Φ26-40 Φ13-26;
Φ26-40
Clamping range of
flat specimen(mm) 0-15 0-15;15-30 0-15;15-30
Max. clamping width
of flat specimen(mm) 70 70 70
Main machine dimension(mm) 740*550*2000 740*550*2100 840*580*2200
Console dimension(mm) 600*500*1300 600*500*1300 600*500*1300
