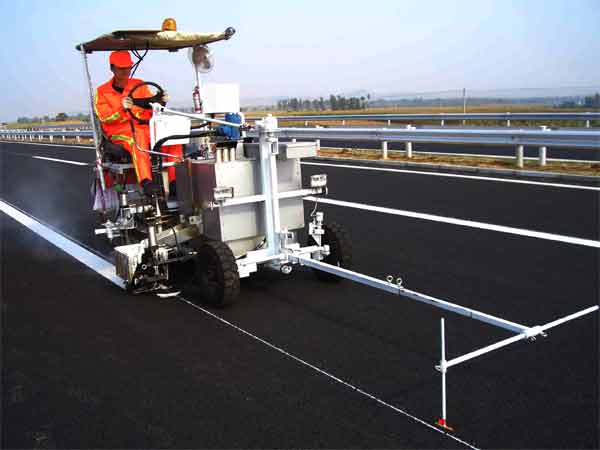

thermoplastic road marking machine
thermoplastic road marking machine, YD11Item Code / Model Number:
YD11
thermoplastic road marking machine
1. Engine: 19Hp air-cooled electric startup 4-stroke double cylinder diesel engine 3000-3600r/min
2. Driving system: The original imported variable speed transmission system with automatic brake device, which can be freely operated in forward, back off or stop
3. Driving speed: 0-15km/h
4. Max climbing capability: 15°
5. Heating: liquefied petroleum gas，Auto-Ignition Control System
6. Glass beads spray system: air jet
7. Control system: computer control system (both flat line and vibration line)
8. Paint tank Cubage: 320kgs
10. Steering system: smooth and reliable mechanical control
9. Line width: 100-500mm
11. Alarming function: Equip with alarming lamp and electro flicker warning light.
12. Weight: 1100kgs (not including the gas tank, with a 150mm shoe).
13. Size: 3100mm (length)*1250mm (width)*1650mm (height)
2. Driving system: The original imported variable speed transmission system with automatic brake device, which can be freely operated in forward, back off or stop
3. Driving speed: 0-15km/h
4. Max climbing capability: 15°
5. Heating: liquefied petroleum gas，Auto-Ignition Control System
6. Glass beads spray system: air jet
7. Control system: computer control system (both flat line and vibration line)
8. Paint tank Cubage: 320kgs
10. Steering system: smooth and reliable mechanical control
9. Line width: 100-500mm
11. Alarming function: Equip with alarming lamp and electro flicker warning light.
12. Weight: 1100kgs (not including the gas tank, with a 150mm shoe).
13. Size: 3100mm (length)*1250mm (width)*1650mm (height)
- Place of Origin:
- china
- Brand:
- YUANDA
- Price Terms:
- FOB DALIAN
- Packing:
- ply wood case
- Payment Terms:
- L/C;D/A;T/T;D/P
- Delivery Time:
- 10 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- ISO
- Keywords:
- road marking machine, line marking machine
