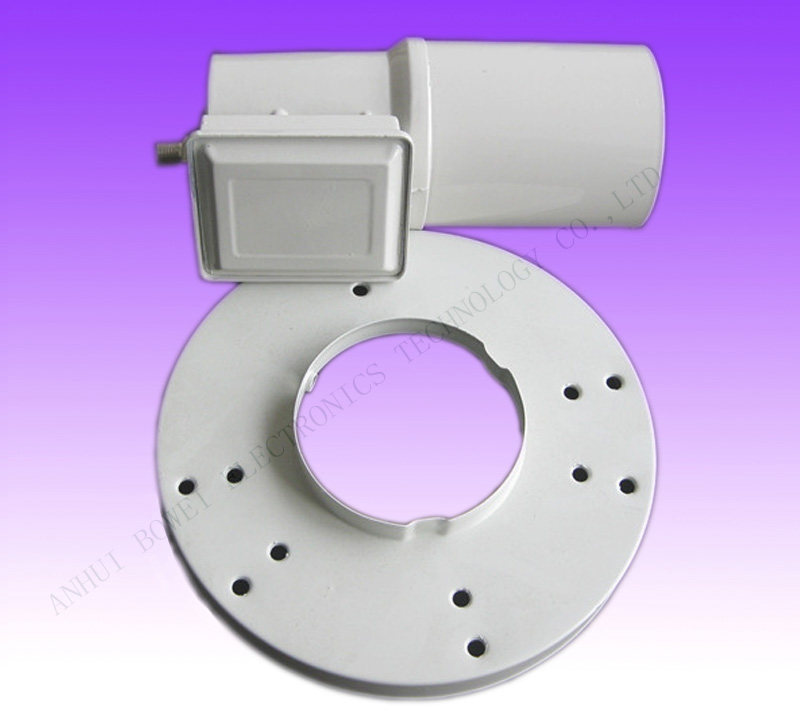

Satellite C Band Lnbf
Satellite C Band Lnbf, BT-380Item Code / Model Number:
BT-380
Satellite C Band Lnbf
1.Input Frequency: 3.4 to 4.2GHz
2. L.O. Frequency: 5150MHz(±500 MHz@25)
3.Output Frequency: 950 to 1750 MHz
4.L.O. Leakage Input Port: 45dBm
5.L.O. Stability: ±1.5MHz(-40to+70)
6.Noise Figure): 13,15,7°K typ
7.Conversion Gain: >55dB typ
8.Gain Flatness: ±1 dBm(max)
9.Intput VSWR: 2.5:1(max)
10.Output VSWR: 2.0:1(max)
11.Output Connector: F-female Connector
12.Output Impedance: 75Ω
13.Cross Polar Isolation: 20dB(min)
14.Image Rejection: 45 dB (min)
15.Phase Noise: -75dBc/Hz@10kHz(max)
16.Supply Voltage:
1)11.5-14.0v(Vertical Polarization)
2)16.0-19.0v(Horizontal Polarization)
17.Operating Temperature: -40to+70
18.Storage Temperature: -40to+80
19.Relative Humidity: 0%-95%
2. L.O. Frequency: 5150MHz(±500 MHz@25)
3.Output Frequency: 950 to 1750 MHz
4.L.O. Leakage Input Port: 45dBm
5.L.O. Stability: ±1.5MHz(-40to+70)
6.Noise Figure): 13,15,7°K typ
7.Conversion Gain: >55dB typ
8.Gain Flatness: ±1 dBm(max)
9.Intput VSWR: 2.5:1(max)
10.Output VSWR: 2.0:1(max)
11.Output Connector: F-female Connector
12.Output Impedance: 75Ω
13.Cross Polar Isolation: 20dB(min)
14.Image Rejection: 45 dB (min)
15.Phase Noise: -75dBc/Hz@10kHz(max)
16.Supply Voltage:
1)11.5-14.0v(Vertical Polarization)
2)16.0-19.0v(Horizontal Polarization)
17.Operating Temperature: -40to+70
18.Storage Temperature: -40to+80
19.Relative Humidity: 0%-95%
- Place of Origin:
- Anhui, China
- Brand:
- Bote
- Price Terms:
- FOB Shanghai
- Packing:
- 30pcs to one carton
- Payment Terms:
- T/T;Cash
- Delivery Time:
- 10 days
- Min Order Quantity:
- 1000pcs
- Keywords:
- c band lnbf, lnbf, satellite lnbf
