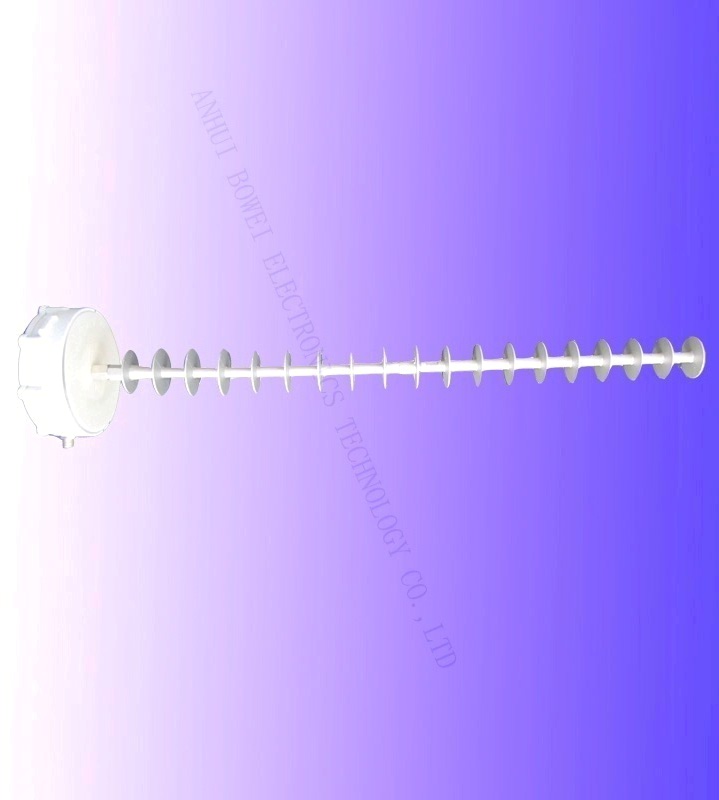

Mmds Downconverter

1.Input Frequency: 2500 to 2700MHz
2.Image Rejection :≥50dB
3.VSWRL: 1.5:1
4.If Rejection:≥80dB
5.PCS Rejection: ≥100dB
6.WCS Rejection: ≥50dB
7.3 order intermodulatio: ≤-50dB
8.Conversion Gain: 36dB±1.5dB
9.L.O. Leakage Antenna Port: ≤-85dBm
10. L.O. Leakage IF-Port: ≤-50dBm
11. L.O. Phase Noise: -93dBc@10kHz offset
12.Output P1dB: +14dBm(typical)
13. Gain Flatness Over Entire Range: ≤±1.5dB
14. Gain Flatness: ≤0.2dB/CHANNEL
15. IF Output Impedance: 75ohms
16. DC Current Consumption : 14v-24v
17. DC Input voltage: 14v-24v
18.Spurious in IF Band: ≤-100dBm
19. L.O. Frequency: 1547,1838,1998,2030,2033,2278,2065MHz...
20. L.O. Stability: ≤±30KHz
21. Operating Temperature: -40 to +70
22. Input Type: BT280:Integrated Dipole Antenna
23. Lightning Protection: Meets IEEE Stands
24. 100% Hermetic: Sealed
