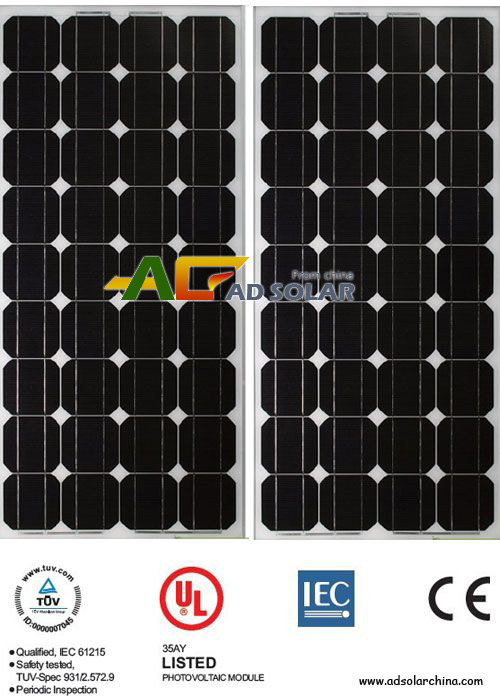

Monocrystalline Silicon Panel 80w

ELECTRICAL CHARACTERISTICS
Maximum Power(Pmax)：80W
Power Tolerance(%)：±5
Maximum Power Voltage(Vmp)：17.8
Maximum Power Current(Lmp)：4.5
Open circuit Voltage(Voc)：21.9
Open circuit Current(Voc)：5
Maximum System Voltage(VDC)：750
MECHANICAL CHARACTERISTICS
Weight(kg)：8.5kg
Frame structure(Material,Corners)：Aluminium
Front side：Glass
Front glass thickness：3.2mm
Encapsulant：EVA
Back side：TPT
Junction Box：made in china
Brand Name of Solar Cells：made in china
CELLS
Cell Type：Mono Crystalline Cell
Cell Size：125*125mm
Cell Shape：Quasi Square
Number Cells：36 in serise

ABSOLUTE MAXIMUM RATINGS
Number Cells：36 in serise
Operating Temperature：40℃-+90℃
Storage Temperature：-40℃-+90℃
Maximum Load Capacity：200 Kg/m2
Maximum Hail diameter @80Km/h：25mm
STANDARD TEST CONDITIONS
AM：1.5
Irradiation：1000W/m2
Tc：25℃
