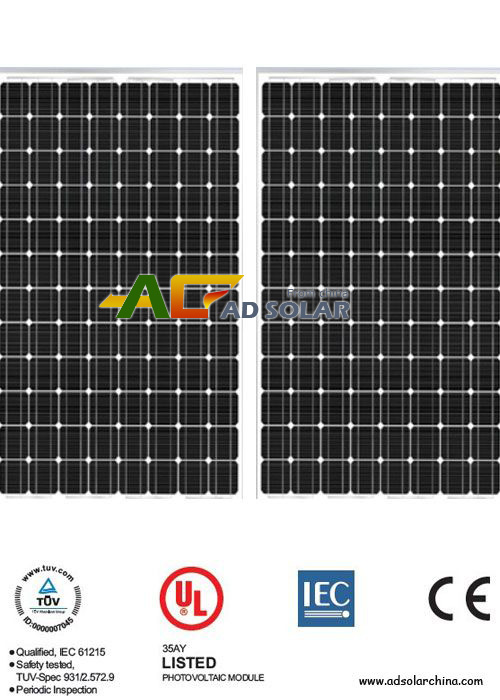

Monocrystalline Silicon Panel 230w
Monocrystalline Silicon Panel 230wContinuous Selling Item
Monocrystalline Silicon Panel 230w
ELECTRICAL CHARACTERISTICS
Maximum Power(Pmax):230W
Power Tolerance(%):±5
Maximum Power Voltage(Vmp):48.2
Maximum Power Current(Lmp):4.77
Open circuit Voltage(Voc):59.1
Open circuit Current(Voc):5.17
Maximum System Voltage(VDC):750
MECHANICAL CHARACTERISTICS
Weight(kg):21.5kg
Frame structure(Material,Corners):Aluminium
Front side:Glass
Front glass thickness:3.2mm
Encapsulant:EVA
Back side:TPT
Junction Box:made in china
Brand Name of Solar Cells:made in china
CELLS
Cell Type:Mono Crystalline Cell
Cell Size:125*125mm
Cell Shape:Quasi Square
Number Cells:96 in serise
ABSOLUTE MAXIMUM RATINGS
Operating Temperature:40℃-+90℃
Storage Temperature:-40℃-+90℃
Maximum Load Capacity:200 Kg/m2
Maximum Hail diameter @80Km/h:25mm
STANDARD TEST CONDITIONS
AM:1.5
Irradiation:1000W/m2
Tc:25℃
Maximum Power(Pmax):230W
Power Tolerance(%):±5
Maximum Power Voltage(Vmp):48.2
Maximum Power Current(Lmp):4.77
Open circuit Voltage(Voc):59.1
Open circuit Current(Voc):5.17
Maximum System Voltage(VDC):750
MECHANICAL CHARACTERISTICS
Weight(kg):21.5kg
Frame structure(Material,Corners):Aluminium
Front side:Glass
Front glass thickness:3.2mm
Encapsulant:EVA
Back side:TPT
Junction Box:made in china
Brand Name of Solar Cells:made in china
CELLS
Cell Type:Mono Crystalline Cell
Cell Size:125*125mm
Cell Shape:Quasi Square
Number Cells:96 in serise
ABSOLUTE MAXIMUM RATINGS
Operating Temperature:40℃-+90℃
Storage Temperature:-40℃-+90℃
Maximum Load Capacity:200 Kg/m2
Maximum Hail diameter @80Km/h:25mm
STANDARD TEST CONDITIONS
AM:1.5
Irradiation:1000W/m2
Tc:25℃
- Place of Origin:
- China
- Brand:
- Ad Solar
- Packing:
- carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 10
- Standard / Certificates:
- TUE and CE
