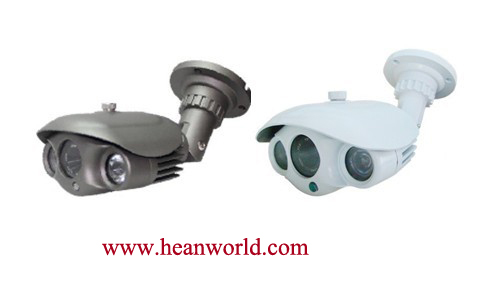

Weatherprof Array Led Cameras 700tvl

1/3 Sony Effio-E 700TVL Single layer, 0.001LUX , Size:32X32mm, D&N, IR sensor, ,OSD,2DNR,DC12V,80mA.


CCD: 1/3 Sony 960H CCD Sensor effio
Size: 32mm*32mm
pixel: PAL: 1020H×596V (0.6megapixel) NTSC: 1020H×508V (0.5megapixel)
effective pixel: PAL: 976H×582V (0.57megapixel) NTSC: 976H×494V
system: PAL/NTSC
Resolution: 700TVL
Digital Noise Reduce: 2DNR, support 0~15 16levels adjust
OSD: support
Low illumination: 0.01LUX/F1.2
S/N: ≥48dB
Video output: 1.0Vp-p/75Ω
AGC: 0.25/0.50/0.75/1.00 4 level adjust max: 55dB
White balance: open/Close
BLC: HLC/ BLC
Electronic shutter: 1/50(1/60) - 1/100000
Gama: 0.45/1.0
Audio: option
Working Voltage: DC12V±5%
Working temprature: -20℃--60℃
Humidity: 0%～96%
