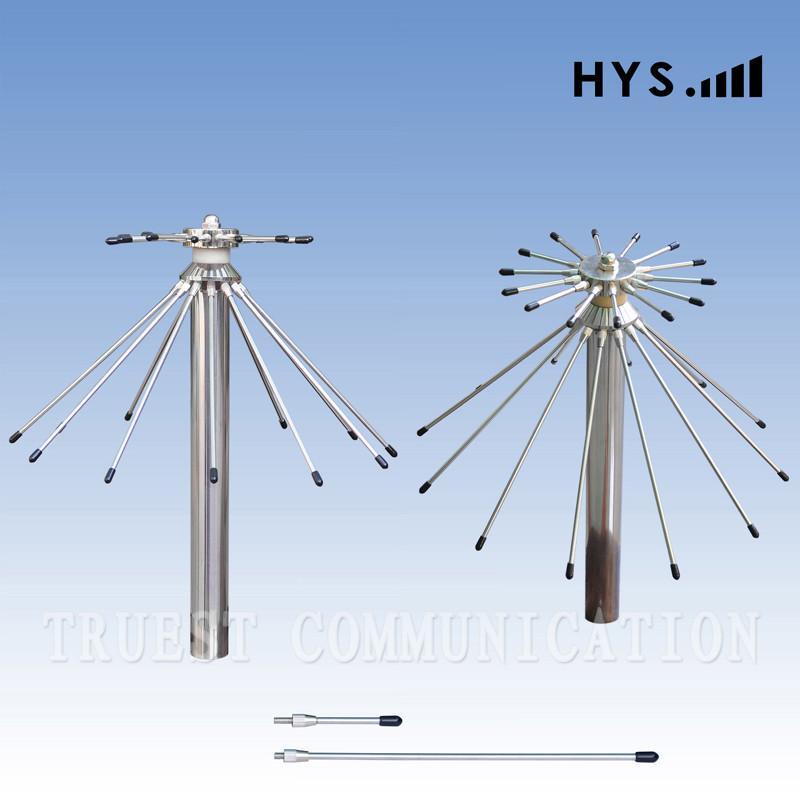

Vehicle - Bone Wide Band Antenna
Vehicle - Bone Wide Band Antenna , TCHHSS480-700Item Code / Model Number:
TCHHSS480-700
Vehicle - Bone Wide Band Antenna
ELECTRICAL SPECIFICATIONS
Frequency Range 480-700 MHz
Impedance 50Ω
VSWR <2
Gain 3 dBi
Polarization Vertical
Maximum Power Input 100W
Lighting Protection Direct Ground
MECHANICAL SPECIFICATIONS
Height 360 mm
Weight 1.12 kg
Diameter of Hardware-supplied Ø32mm
Radiating Element Material Stainless steel stick
Connector SO239
Frequency Range 480-700 MHz
Impedance 50Ω
VSWR <2
Gain 3 dBi
Polarization Vertical
Maximum Power Input 100W
Lighting Protection Direct Ground
MECHANICAL SPECIFICATIONS
Height 360 mm
Weight 1.12 kg
Diameter of Hardware-supplied Ø32mm
Radiating Element Material Stainless steel stick
Connector SO239
- Place of Origin:
- China
- Brand:
- Hys
- Packing:
- CARTON
- Payment Terms:
- T/T
- Delivery Time:
- WITHIN 5- 10 days
- Min Order Quantity:
- 500pcs
- Keywords:
- antenna, car antenna, vehicle antenna
