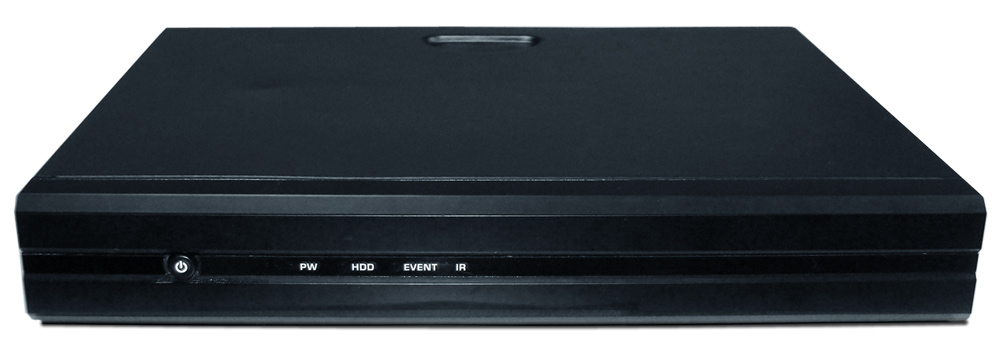

Dvr

Key Features:

• H.264 hardware compression. realtime Video&Audio synchronous monitor and record.
• D1 (4CIF) high quality image playback.
• 4 channels fast search and playback
• Easy record backup to USB device
• IE remote access and control.
• Bi-direcrional remote voice talk
• Support multi-zone motion detect, privacy mask, video lost alarm, positioning OSD, multi-level user management.
• Alarm auto report to center (ILDVR CMS or Live Center)

Specifications:

Compression :H.264 (Hardware support)
Video Output :1 channel BNC, 1 VGA(800*600,1024*768,1280*1024,1440*900,1600*1200,1680*1050,1920*1080)
Audio Output :1 channel RCA
Video Input :4-channel BNC
Audio Input :4-channel RCA
Preview Resolution :PAL: 704x576(D1), NTSC:704x480(D1)
Playback resolution :D1/Half D1/CIF: Total 120fps@CIF or 30fps@D1
Frame Rate Range :PAL: 1,3,6,12,25 fps and user self defined.
NTSC: 1,3,6,12,30 fps and user self defined.
Bit Rate Range :32Kbps to 2Mbps, self-defined.
Stream Type :Video & Audio / Video
Communication Interface :1 RJ45 (10M/100M), 1 RS422
External Alarm In :4
Relay Output :1
Dual-Stream :Yes
Voice Talk Same as audio input and audio output
HDD Interface :1 SATA (maximum 2000GB)
USB Interface :2 USB
Power Supply :DC 12V/3A
Operation Temperature :-10°C ~ 40°C
Operation Humidity :10% ~ 90%
Dimension :340mm x 270mm x 55mm
Weight :1.8 kg (without HDD)
