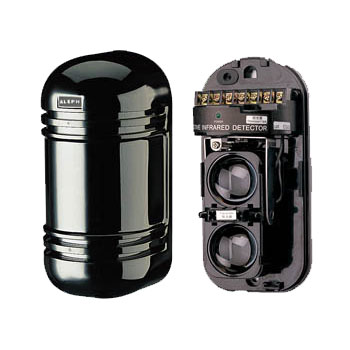

Twin Photoelectric Beam Detect

Features:
2 Synchronized Pulsed Beams
Adjustable Beam Interruption Period
99.5% Beam Blocking Stability
Frost and Dew Protection
High Grade Aspherical Lens
A.G.C. Circuit


Model: ABT-30/ABT-40/ABT-60/ABT-80/ABT-100
Detection method: Active Infrared Beam
Detection Range:
Outdoor: 30m/40m/60m/80m/100m
Indoor: 90m/120m/180m/240m/300m
Beam characteristics: Pulsed infrared dual beams
Interruption period: 50~700m sec(selectable)
Power input: DC12~24V/AC11~18V
Current consumption: 40mA max/40mA max/65mA max/65mA max/65mA max
Alarm period: 2Sec(±1)nominal
Alarm output: Form C relay (AC/DC 30V 0.5A max)
Tamper switch: N.C.Opens when cover is removed (receiver only)
Operating temperature: -25℃ ~ +55℃
Environment humidity: 95% max
Alignment angle: ±5°vertical, ±90°horizontal
Mounting: Wall or pole
Weight: 300g(Both transmitter and receiver)
Dimension: 170*80*110mm
Appearance: PC Resin(Black)
