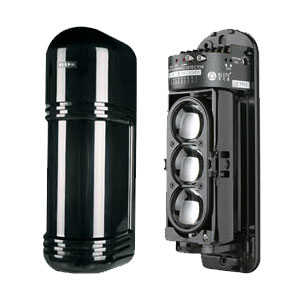

Triplicate Photoelectric Beam Detector

Features:
3 Synchronized Pulsed Beams
99.5% Beam Blocking Stability
Frost and Dew Protection
High Grade Aspherical Lens
10 LED Indicators for Quick Allignment
Adjustable Beam Interruption Period
A.G.C(Automatic Gain Control) Circuit

Model: ABE-50/100/150/200/250
Detection method: Active Infrared Beam
Detection Range:
Outdoor: 50m/100m/150m/200m250m
Indoor: 150m/300m/450m/600m/750m
Beam characteristics: Pulsed infrared dual beams
Interruption period: 50~700m sec(selectable)
Power input: DC12~24V/AC11~18V
Current consumption: 70mA max/80mA max/90mA max/100mA max/100mA max
Alarm period: 2Sec(±1)nominal
Alarm output: Form C relay (AC/DC 30V 0.5A max)
Tamper switch: N.C.Opens when cover is removed (receiver only)
Operating temperature: -25℃ ~ +55℃
Environment humidity: 95% max
Alignment angle: ±10°vertical, ±90°horizontal
Mounting: Wall or pole
Weight: 2168g(Both transmitter and receiver)
Dimension: 285*90*96mm
Appearance: PC Resin(Black)
