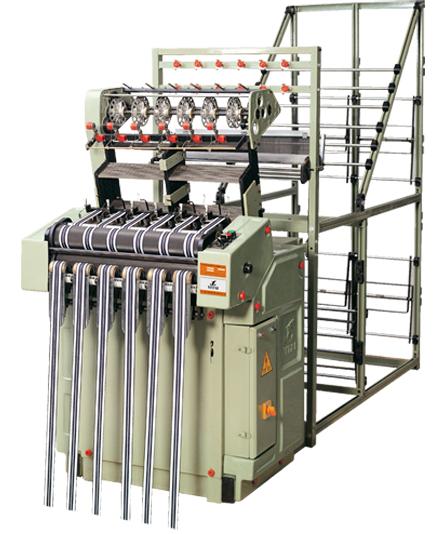

Sell High Speed Needle Loom

High speed needle loom
Applicable scope: Be applicable to produce all kinds of elastic and unelastic belt and tapes such
as shoelace, ribbon, circumference, safety belt, backpack belt, lacing belt, macramé and so on.

1.YITAI high speed needle looms have many models with different tapes and width. For example, our model YTB 2/165 needle loom can produce 2 tapes at the same time with max tape width 165mm. We have many models including YTB 2/165, 2/110, 4/65, 8/30/, 10/25, 12/30 and so on. The tapes can be from 2-24 tapes, the width can be from very little to 165mm.
2.Adopt automatically stop device, once the yarn break, the machine will stop automatically.
3.Adopt automatic lubrication device, the oil can cycle and lubricate the machine automatically.
4.Our machine can be designed and produced according to customer’s requirements. The size of the machine can also be designed to suit different workshop.
Model (YTB) 2/165 4/65 6/45 6/55 8/30 10/25 12/20 2/110 4/80 8/55 10/45 12/30
Number of tapes 2 4 6 6 8 10 12 2 4 8 10 12
Reed width(mm) 165 65 45 55 30 25 20 110 80 55 45 30
Motor(HP) 1.5 HP
Max speed （r.p.m.） 1400 r.p.m
Heald frame（pcs） 12-16 pcs
Link Chain circle 8-48 pcs
Weft density 3.5-36.7 weft/cm
Normal attachment Creel places, needle loom normal attachments.
Optional attachment Beam, rubber feeder，finished product winding device，extra creel places
