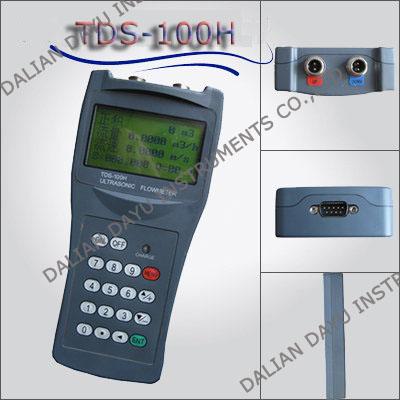

Portable Ultrasonic Flow Transmitter With Clamp On Sensor
Portable Ultrasonic Flow Transmitter With Clamp On SensorContinuous Selling Item
Portable Ultrasonic Flow Transmitter With Clamp On Sensor
The portable ultrasonic flow meter is characterized by low cost, high portability, high accuracy and non-intrusive.
1. Accuracy: 1.0%
2. Repeatability:0.2%
3. Response Time:0-999 seconds, user-configurable
4. Velocity:±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
5. Pipe Size :1/2” ~ 240” (DN15 ~ 6,000mm)
6. Rate Units: Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
7. Totalizer: 7-digit totals for net, positive and negative flow
8. Liquid Types: Virtually all clean liquids
9. Liquid Temperature:-40~160℃
10. Security:Setup lockout. Access code needed for unlocking
11. Display:4x16 English letters
12. Communication Interface:RS-232.
13. Transducers:Clamp on type transducers.
14. Transducer Cable:Standard 2x30’ (10m), optional 2x1,500’ (500m)
15. Power Supply :3 AAA Ni-MH built-in batteries. When fully charged it will last over 10 hours of operation.90-230VAC for the charger
16. Data Logger:Built-in data logger can store over 2,000 lines of data
17. Manual Totalizer:7-digit press-key-to-go totalizer for calibration
18. Housing Material:ABS. Aluminum alloy protective case
19. Case Size:3.9"x2.6"x0.8" (100x66x20mm)
20. Handset Weight:1.2 lbs (514g) with batteries
1. Accuracy: 1.0%
2. Repeatability:0.2%
3. Response Time:0-999 seconds, user-configurable
4. Velocity:±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
5. Pipe Size :1/2” ~ 240” (DN15 ~ 6,000mm)
6. Rate Units: Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
7. Totalizer: 7-digit totals for net, positive and negative flow
8. Liquid Types: Virtually all clean liquids
9. Liquid Temperature:-40~160℃
10. Security:Setup lockout. Access code needed for unlocking
11. Display:4x16 English letters
12. Communication Interface:RS-232.
13. Transducers:Clamp on type transducers.
14. Transducer Cable:Standard 2x30’ (10m), optional 2x1,500’ (500m)
15. Power Supply :3 AAA Ni-MH built-in batteries. When fully charged it will last over 10 hours of operation.90-230VAC for the charger
16. Data Logger:Built-in data logger can store over 2,000 lines of data
17. Manual Totalizer:7-digit press-key-to-go totalizer for calibration
18. Housing Material:ABS. Aluminum alloy protective case
19. Case Size:3.9"x2.6"x0.8" (100x66x20mm)
20. Handset Weight:1.2 lbs (514g) with batteries
- Place of Origin:
- China
- Brand:
- Dayu
- Unit Price:
- USD 860
- Port:
- FOB Dalian
- Packing:
- Carton packing
- Payment Terms:
- ;T/T
- Delivery Time:
- 5 working
- Min Order Quantity:
- 1 PC
