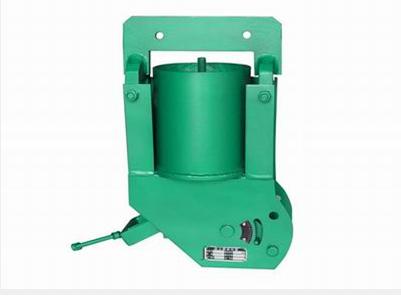

Sell Constant Spring Hanger

58H, 58 V and 80V Constant Force Spring Hangers (US ITT Technology)

1. Applicable Range

The 58H, 58 V and 80V constant force spring hangers (US ITT Technology) are applicable to 38mm (1 1/2") to 508mm (20") displacement, 12.7mm (1/2") interval and 12daN to 39,690daN loading capacity.

2. Classification and Model



Classification
Model Code
Installation Form

Horizontal Type Constant Force Spring Hangers
58H
A Type, B Type, C Type, E Type, G Type

Vertical Constant Force Spring Hangers
58V
A Type, B Type, C Type, D Type, E Type

Support Type Constant Force Spring Hangers
80V
F Type

A Type-Duplex Pull Rod Connection

B Type-Single Hanger Plate Connection

C Type-Double Hanger Plate Connection
D Type-Top Surface Connection

E Type-Pedestal Connection

G Type-Parallel Connection of Constant Force Spring Hangers
