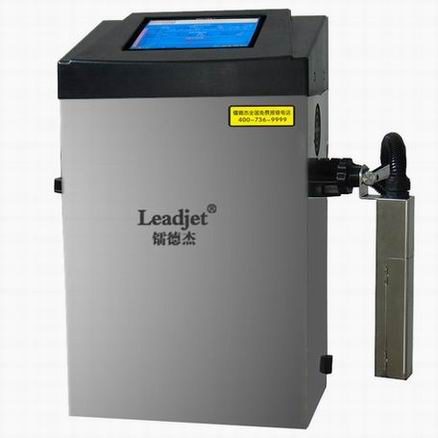

Industrial Inkjet Printer V100a

FEATURE
Print consistently high quality images even on structured and uneven surfaces
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
Easy to be integrated at any position of the production line
User friendly interface and most reliable ink system
Design for adding ink and solvent automatically
Self-monitor when machine works, without personal interference
32 bit embeded CPU, large memory, and the 8.4'' TFT bright clear touch screen
Configure RS232 & USB communication interface, printing with computer
Language alarm function

APPLICATIONS
Automobile part, Beverages, Cosmetics, Electronic Component, Foods, Pharmaceuticals, Stone & Wooden products, Eggs, Pipes & Tubes, Cables & Wires etc.

Hydraulic System
Compact design
Full automatic viscosity control and pressure control
No external supply of compressed air required
Multiple industry application with reasonable price and economical operation cost
Electronic control system completely separated design from hydraulic system Stable performance, easy operation for

Print Head
Compatible design, maintenance friendly
Automatic ink stream on when start up and ink stream suck back when turn off
Nozzle size: 58 μ M standard, 52 to 65 μ M optional
Easily accessible and can be installed in any position
Distance from print head to print surface 1mm~30mm

TECHINICAL SPECIFIFATION
Print Lines 1-5 lines (5 x 5 dots)
DOT Matrix figure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,
24 x 24, and user-defined in 32 x 32
Memory 1000 message, 1000 graphics
Print Speed 1400 character per second (5 x 7 dots)
Letter Height 1-20mm
Operating Interface Chinese, English
Print Objects Chinese & English chracter, figure, date, time, and
Numbering of reset
Material metal, plastic, glass, woode, turing, electrical wire, cable etc
Font Width up to 9 times
Nozzle Connection Tube 3M
Ink Color black, blue, red etc
Consumption of Ink 70 millions character per litre
Operating Environment 5-45 degree centigrade, below 90%(humidity)
Power Source AC220V / 380V 50Hz 100AV
