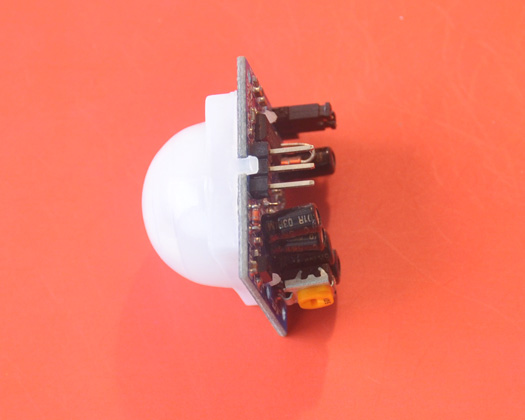

Pir Module
Pir Module, BS006Item Code / Model Number:
BS006
Pir Module
PIR Motion detector module is device can detect human movement,
It will be an output signal when detecting a moving object..Widely used on the lighting, security System, and some automatic sensing device..
Specification:
Model No.
BS006
Description
Passive Infrared Sensor Modules
Operating voltage
DC 5V~20V (DC 3V~5V is optional)
Static power loss
≤ 50 uA
Delay time
30 Secs (0.5~420 Secs is optional)
Detecting range
≤140 degrees cone angle, ≤5M-7M (0~7M is optional)
Triggers the way
continuous triggering, discontinuous triggering. (jumper)
Blockade timeï¼ÂÂÂÂ
0.5s-50s (acquiescently 0 seconds)
Output type
high level / low level /TTL is optional
light sensor
Depend on customer requirement
PCB Dimension
24*32mm
It will be an output signal when detecting a moving object..Widely used on the lighting, security System, and some automatic sensing device..
Specification:
Model No.
BS006
Description
Passive Infrared Sensor Modules
Operating voltage
DC 5V~20V (DC 3V~5V is optional)
Static power loss
≤ 50 uA
Delay time
30 Secs (0.5~420 Secs is optional)
Detecting range
≤140 degrees cone angle, ≤5M-7M (0~7M is optional)
Triggers the way
continuous triggering, discontinuous triggering. (jumper)
Blockade timeï¼ÂÂÂÂ
0.5s-50s (acquiescently 0 seconds)
Output type
high level / low level /TTL is optional
light sensor
Depend on customer requirement
PCB Dimension
24*32mm
- Place of Origin:
- China
- Brand:
- Besterhk
- Delivery Time:
- 5-10 days
- Min Order Quantity:
- 200pcs
- Standard / Certificates:
- 500000pcs/year
- Keywords:
- pir module, pir motion module, pir sensor
