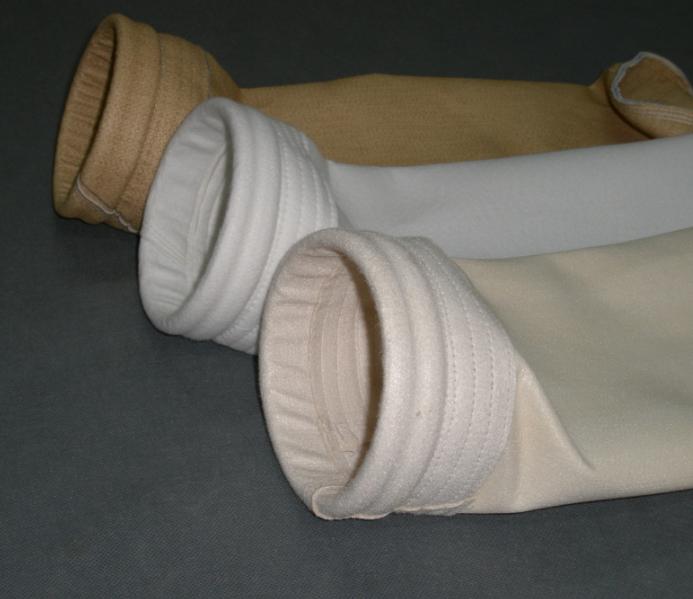

Nonwoven Fabric
Nonwoven Fabric, 001Item Code / Model Number:
001
Nonwoven Fabric
E:alex(at)csjfilter dot com
Our company produces 3 types of needled felt, i.e. synthetic fiber needle felt ,pure glass fiber needle felt, and compound fiber needle felt.
The synthetic fiber needled felt is made from PE, PP,P84, PPS, PTFE, Kermel and Metamax.
The compound needled felt is made with a certain amount of synthetic fiber blended into the felt. Synthetic fiber has stronger interlocking capability. Compared with pure glass fiber needle felt, the peeling strength between felt and base fabric and friction resistance has increase 3 or 4 folds. Thus its service life is strikingly prolonged.
It has three-dimensional micro porous with high porosity and low resistance. The dust separation efficiency is up to 99.9%, higher than that of woven fabric. This product is suitable to bag filters with impulse jet or high velocity reverse air clean-down technology.
The compound needled felt is mainly used for cement and carbon black industries, and the synthetic fiber needled felt is mainly used for dust separation of coal-fired boiler and precious metal recovery in non-ferrous metallurgy.
Materials PPS P84 Metamax Kermel PP Acrylic PTFE Polyester
Mass (g/m2) 500 500 500 500 500 550 750 750 750 500
Tensile Breaking Strength (N/50mm) Warp ≥1000 ≥1000 ≥1000 ≥1000 ≥1500 ≥800 ≥700 ≥700 ≥700 ≥800
Weft ≥1200 ≥1200 ≥1200 ≥1200 ≥1800 ≥1100 ≥800 ≥800 ≥800 ≥1200
Tensile Breaking Elongation (%) Warp ≤30 ≤30 ≤30 ≤30 ≤28 ≤25 ≤16 ≤18 ≤18 ≤35
Weft ≤50 ≤50 ≤50 ≤50 ≤35 ≤45 ≤18 ≤20 ≤20 ≤50
Air Permeability (cm/s) @127Pa 15~30 15~30 15~30 15~30 15~30 15~30 12~30 2~6 12~30 15~30
Treatment Singed, Calendar, Heat Setting, Acid Resistant Heat Setting PTFE Membrane Dipping Oil & Waterproof, Acid Resistant, Antistatic,
Singed, Calendar, Heat Setting
Temperature (oC) ≤190 ≤260 ≤200 ≤220 90 140 -190~260 130-150
Recommended Air Flow (m/min) <1.5
Our company produces 3 types of needled felt, i.e. synthetic fiber needle felt ,pure glass fiber needle felt, and compound fiber needle felt.
The synthetic fiber needled felt is made from PE, PP,P84, PPS, PTFE, Kermel and Metamax.
The compound needled felt is made with a certain amount of synthetic fiber blended into the felt. Synthetic fiber has stronger interlocking capability. Compared with pure glass fiber needle felt, the peeling strength between felt and base fabric and friction resistance has increase 3 or 4 folds. Thus its service life is strikingly prolonged.
It has three-dimensional micro porous with high porosity and low resistance. The dust separation efficiency is up to 99.9%, higher than that of woven fabric. This product is suitable to bag filters with impulse jet or high velocity reverse air clean-down technology.
The compound needled felt is mainly used for cement and carbon black industries, and the synthetic fiber needled felt is mainly used for dust separation of coal-fired boiler and precious metal recovery in non-ferrous metallurgy.
Materials PPS P84 Metamax Kermel PP Acrylic PTFE Polyester
Mass (g/m2) 500 500 500 500 500 550 750 750 750 500
Tensile Breaking Strength (N/50mm) Warp ≥1000 ≥1000 ≥1000 ≥1000 ≥1500 ≥800 ≥700 ≥700 ≥700 ≥800
Weft ≥1200 ≥1200 ≥1200 ≥1200 ≥1800 ≥1100 ≥800 ≥800 ≥800 ≥1200
Tensile Breaking Elongation (%) Warp ≤30 ≤30 ≤30 ≤30 ≤28 ≤25 ≤16 ≤18 ≤18 ≤35
Weft ≤50 ≤50 ≤50 ≤50 ≤35 ≤45 ≤18 ≤20 ≤20 ≤50
Air Permeability (cm/s) @127Pa 15~30 15~30 15~30 15~30 15~30 15~30 12~30 2~6 12~30 15~30
Treatment Singed, Calendar, Heat Setting, Acid Resistant Heat Setting PTFE Membrane Dipping Oil & Waterproof, Acid Resistant, Antistatic,
Singed, Calendar, Heat Setting
Temperature (oC) ≤190 ≤260 ≤200 ≤220 90 140 -190~260 130-150
Recommended Air Flow (m/min) <1.5
- Place of Origin:
- China
- Brand:
- Csj
- Price Terms:
- FOB Dalian
- Packing:
- carbon box
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 15-20 days
- Min Order Quantity:
- 200pcs
- Standard / Certificates:
- ISO9001-2000
- Keywords:
- filter, filter bag, needle felt
