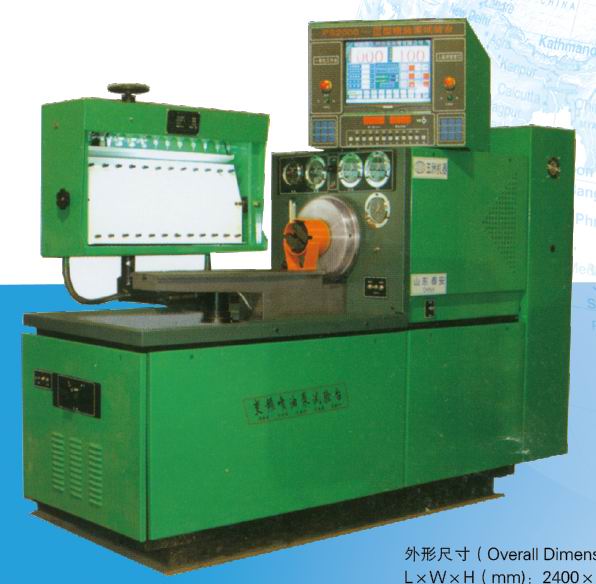

Ps2000 Diesel Injection Pump Test Bench

PS2000 series fuel injection pump test bench, include the model PS2000-I,PS2000-IV,PS2000-V,WZS815, all three models adopt industrial PC with color 17'LCD. It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates, it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, it is advanced products.

Main function
　 1．Measurement of each cylinder delivery at any speed。
　 2. Test point and interval angle of oil supply of injection pump.
　 3. Checking and adjust the mechanical governor.
　　 4. Checking and adjusting the distributor pump.
　　 5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
　　 7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

　　 8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
　　 10. Checking the sealing of injection pump body
　　 11. Install tube of auto-sucking oil supply can check on oil supply pump
12．Checking the travel of stroke (on request)
13 LCD touch screen, two operating systems
