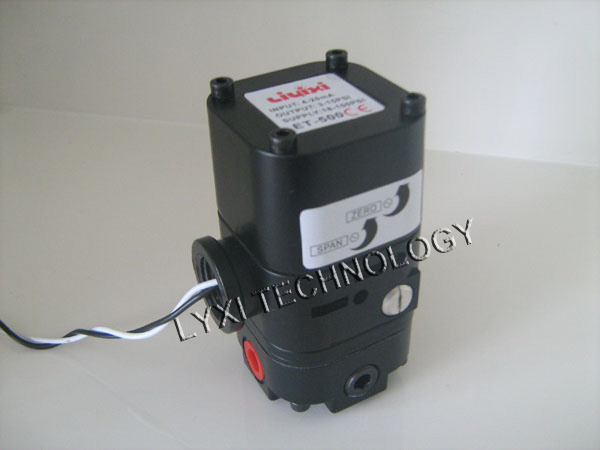

Electropneumatic Transducer Ip Ep Converter

Input electrical current:4-20MA,0-10V
Output pressure:20-100kpa
ET-500 IS electropneumatic transducer Equipment,it can decrease supply pressure to produce output pressre which is effectively proportional to input electric signal.
Supply pressure range:125kPa～1000kPa.with bulk augmenter supply big flow (20.4 m3/h).
Features:
Flow Rate: 7.6m3/h when supply pressure is 175kPa
20.0m3/h when supply pressure is 700kPa
Min/max. Supply pressure:
minimum-3psig(21kpa) above maximum output
maximum-100psig(700kPA)
Sensitivity: <+-0.15% of span per 10 psig
Linearity:<+-0.75% of span
Repeaability: <0.5% of span
Hysteresis: <0.1% of span
Flow Rate: 4.5 scfm(7.6m3/hr ANR) at 100 psig(175 kpa) supply
12.0 scfm(20.0m3/hr ANR) at 100 psig(700 kpa) supply
Maximum air consumption: 0.05scfm(0.07m3/hr ) midrange typical
Port Size:
1/4 NPT(pneumatic)
1/2 NPT(Electric)
Weight: 2.1lb.(0.94kg)
Input current:4-20ma
Output pressure:20-800kpa
