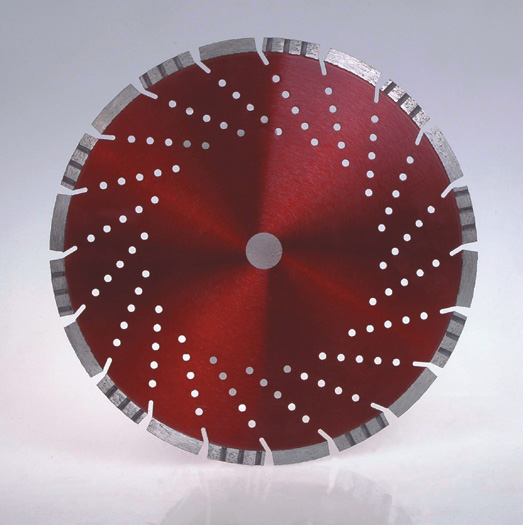

Silent Diamond Saw Blade For Rock Cutting
Silent Diamond Saw Blade For Rock Cutting, F14Item Code / Model Number:
F14
Silent Diamond Saw Blade For Rock Cutting
silent diamond saw blade for rock cutting
(Diamond Saw Blades for edge cutting of slabs of Granite, Sandstone, Slate, Kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine and Manual Handling Machine)
The following is the specification of Diamond Saw Blades & Segments for Granite cutting:
Outer diameter (mm) Bore Segment length Segment thickness Segment height Segment No. Application
250(10") 25.4 40 2.8/3.0 10/12/15/20 17
300(12") 25.4/50 40 3.0/3.2 10/12/15/20 21
350(14") 25.4/50 40/20 3.0/3.2 10/12/15/20 24
400(16") 25.4/50 40/20 3.4/3.6 10/12/15/20 28
450(18") 25.4/50 40/20 3.8/4.0 10/12/15/20 32
500(20") 25.4/50 40/20 3.8/4.0 10/12/15/20 30/36
550(22") 25.4/50 40/20 4.0/4.6 10/12/15/20 32/40
600(24") 25.4/50 40/20 4.6/4.8 10/12/15/20 36/42
650(26") 25.4/50 40/20 5.0/5.2 10/12/15/20 40/46
700(28") 25.4/50 40/20 5.0/5.2 10/12/15/20 42/50
800(30") 25.4/50 40/20 5.5 10/12/15/20 46/57
Wet use only.
The features:
Easy and smooth cutting, Long lifespan and stable performance, Good cutting result and high efficiency.
Silent saw blade is available.
The above specification is only for Reference, other or special specification can be ordered by customers.
(Diamond Saw Blades for edge cutting of slabs of Granite, Sandstone, Slate, Kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine and Manual Handling Machine)
The following is the specification of Diamond Saw Blades & Segments for Granite cutting:
Outer diameter (mm) Bore Segment length Segment thickness Segment height Segment No. Application
250(10") 25.4 40 2.8/3.0 10/12/15/20 17
300(12") 25.4/50 40 3.0/3.2 10/12/15/20 21
350(14") 25.4/50 40/20 3.0/3.2 10/12/15/20 24
400(16") 25.4/50 40/20 3.4/3.6 10/12/15/20 28
450(18") 25.4/50 40/20 3.8/4.0 10/12/15/20 32
500(20") 25.4/50 40/20 3.8/4.0 10/12/15/20 30/36
550(22") 25.4/50 40/20 4.0/4.6 10/12/15/20 32/40
600(24") 25.4/50 40/20 4.6/4.8 10/12/15/20 36/42
650(26") 25.4/50 40/20 5.0/5.2 10/12/15/20 40/46
700(28") 25.4/50 40/20 5.0/5.2 10/12/15/20 42/50
800(30") 25.4/50 40/20 5.5 10/12/15/20 46/57
Wet use only.
The features:
Easy and smooth cutting, Long lifespan and stable performance, Good cutting result and high efficiency.
Silent saw blade is available.
The above specification is only for Reference, other or special specification can be ordered by customers.
- Place of Origin:
- China
- Brand:
- Sino Tools
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 7-15 days
- Min Order Quantity:
- 10pcs
- Keywords:
- silent diamond saw blade, diamond tools, rock cutting
