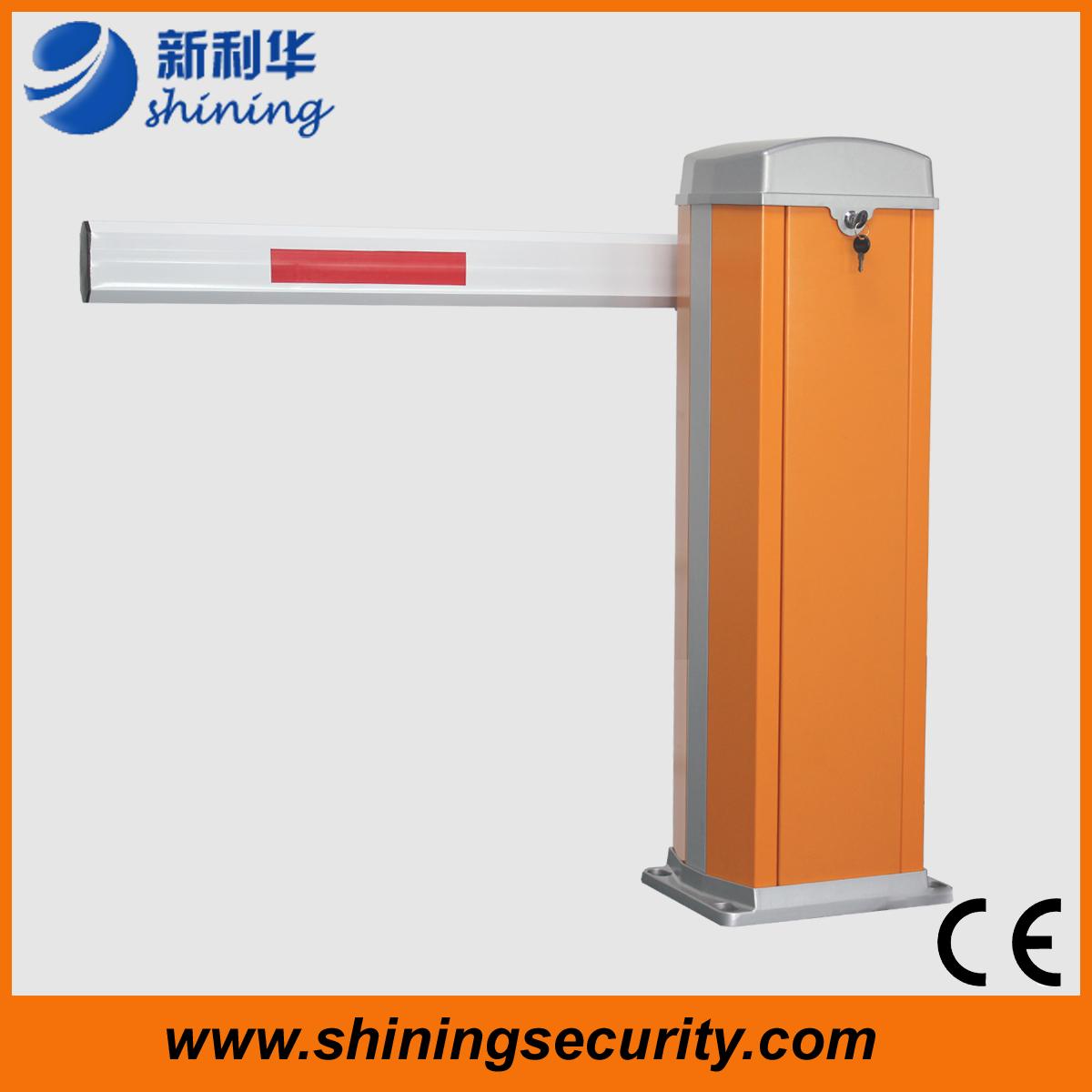

Barrier Gate

Boom Gate Barrier
Aluminum die casting design
AC motor
Stable running for arm up to 6m, 3s & 6s
Direction adjustable

Features:
1. Integrative machine core: all part is made by mold, so all parts can be more accurate. And so the barrier gate can be much more stable;
2. Left or right installed can be amendable. Customer can amend install direction by himself.
3. No need to change spring for boom length changing (one spring for 3-6m boom);
4. Aluminum die casting machine core and big reduction ratio transmission motor solve the problem of motor blocking.
5. Barrier can warm up automatically by itself if temperature is 0 degree or below, so barrier still can work in very cold environment.

Parameters of parking boom gate barrier:
Maximum straight boom length: 3s type 4.5m
6s type 6m
Opening and closing times: 3s/6s
Voltage: 220V/110V +-10%
Frequency: 60HZ/50HZ
Motor power consumption: 120W
Working temperature: -40°to 85°
Housing dimension: 300(Width)*240(Depth)*996(Height) mm
Base Dimension: 347(Width)*264(Depth)
Weight not including barrier boom: 34kgs
Drive: Torque motor
Maximum Remote Control Distance: 30m
