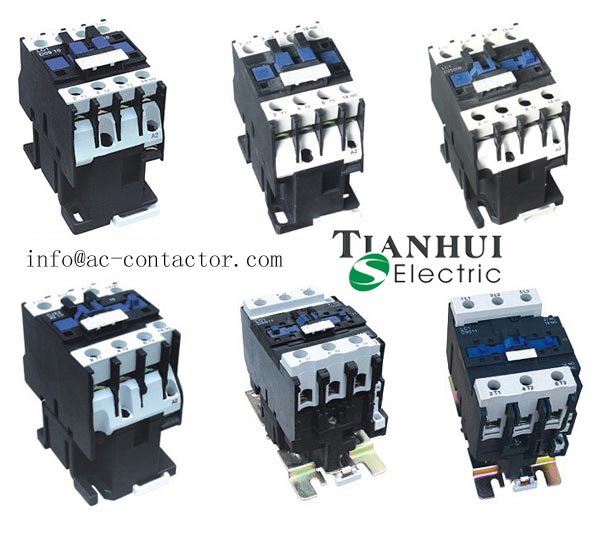

Lc1-d Ac Contactor
Lc1-d Ac ContactorItem Code / Model Number:
Lc1-d Ac Contactor
LC1-D AC Contactor manufacturer
LC1-D AC Contactor model:LC1-D0910 Contactor,LC1-D0901 Contactor,LC1-D1210 Contactor,LC1-D1201 Contactor,LC1-D1810 Contactor,LC1-D1801 Contactor,LC1-D2510 Contactor,LC1-D2501 Contactor,LC1-D3210 Contactor,LC1-D3201 Contactor,LC1-D4011 Contactor,LC1-D5011 Contactor,LC1-D6511 Contactor,LC1-D8011 Contactor,LC1-D9511 Contactor,
LC1-D AC Contactor Applications:
1). It is suitable for frequency 50/60Hz, rated voltage up to 660V, rated operation current 9~95A under AC-3 duty.
2) It is mainly used for making / breaking electric circuits at a long distance & for frequent starting / stopping & controlling AC Motors.
3) It can become the time-delay contactor, mechanical interlocking contactor, star-delta starter with other parts..
4) With the thermal relay, it is combined into the electromagnetic starter LC1-D AC Contactor
5) The products com-ply with IEC60947-4-1 standard.
LC1-D AC contactor: Main technical Parameter
Rated insulated voltage: 660V
Type: LC1-D09, LC1-D12, LC1-D18, LC1-D25, LC1-D32, LC1-D40, LC1-D50, LC1-D65, LC1-D80, LC1-D95
Under AC-3, controlled power (kW)
UnderAC-3, 380V---
rated operation current (A) 9, 12, 18, 25, 32, 40, 50, 65, 80, 95
220V : 2.2kW, 3kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 25kW
380V: 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW
660V: 5.5kW, 7.5kW, 10kW, 15kW, 18.5kW, 30kW
LC1-D AC Contactor model:LC1-D0910 Contactor,LC1-D0901 Contactor,LC1-D1210 Contactor,LC1-D1201 Contactor,LC1-D1810 Contactor,LC1-D1801 Contactor,LC1-D2510 Contactor,LC1-D2501 Contactor,LC1-D3210 Contactor,LC1-D3201 Contactor,LC1-D4011 Contactor,LC1-D5011 Contactor,LC1-D6511 Contactor,LC1-D8011 Contactor,LC1-D9511 Contactor,
LC1-D AC Contactor Applications:
1). It is suitable for frequency 50/60Hz, rated voltage up to 660V, rated operation current 9~95A under AC-3 duty.
2) It is mainly used for making / breaking electric circuits at a long distance & for frequent starting / stopping & controlling AC Motors.
3) It can become the time-delay contactor, mechanical interlocking contactor, star-delta starter with other parts..
4) With the thermal relay, it is combined into the electromagnetic starter LC1-D AC Contactor
5) The products com-ply with IEC60947-4-1 standard.
LC1-D AC contactor: Main technical Parameter
Rated insulated voltage: 660V
Type: LC1-D09, LC1-D12, LC1-D18, LC1-D25, LC1-D32, LC1-D40, LC1-D50, LC1-D65, LC1-D80, LC1-D95
Under AC-3, controlled power (kW)
UnderAC-3, 380V---
rated operation current (A) 9, 12, 18, 25, 32, 40, 50, 65, 80, 95
220V : 2.2kW, 3kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 25kW
380V: 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW
660V: 5.5kW, 7.5kW, 10kW, 15kW, 18.5kW, 30kW
- Place of Origin:
- China
- Brand:
- Tianhui Electric
- Price Terms:
- FOB Shanghai
- Other Price Terms:
- FOB NINGBO
- Packing:
- 50PCS/CARTONS
- Payment Terms:
- L/C;T/T
- Keywords:
- lc1-d ac contactor, contactor, ac contactor
