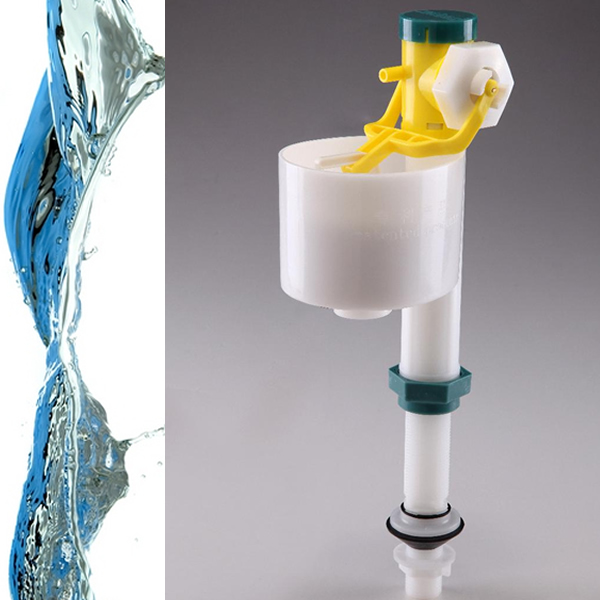

Patented toilt fill valve / toilet tank fittings

1,It has realized no water linking, no penetration and it works with precise water intake and reliable performance. It has also achieved long service life of over 300 thousands times of running, which is based on reliable experimental testing. All these merits make it truly water- saving toilet water valve.
2,It works efficiently under low and high pressure between 0.01kh/cm2 and 16kg/cm2.
3,It can adapt various water quality, such as tap water, foul water, sea water.
4,It can adapt the water between 0~122°F in the long-term running.
5,It works with excellent precision on the water level control. Based on the testing results under various working pressure of tap water, It shows a precision always within 1mm.
6,It can adapt various water levels.
7,It works without noise during water fill, which can be a problem for most traditional rubber seal fill valves.
8,It works with stable water supplement ratio.
9,It has acquired Utility model patent, patent#: ZL200920136589.2 (please refer to patent doc. in download page for details.
10,Thread: G1/2", 3/8", 15/16" in plastic, 1/2", 3/8" in copper.
11,Suits for most of the standard toilets.
Three models available: XMBOS-111T/E/S (Thread:1/2"--T; 3/8"--E; 15/16"--S)



======================================================================

The selection of ceramic material to take place of silicon rubber material for the sealing part has below advantages:
1. Technical property. During the production of silicon rubber parts, mould shrinkage problem happens most often, to solve this problem, it requires good control of molding temperature, processing condition and good maintenance of mould, all of these will greatly increase the cost, to be worse, the finished products still cannot meet the precision standards. However, it will be no problem if we use ceramic material, we equipped two pcs of ceramic chips with holes on each, and they can match perfectly with each other when water is going through or blocked.

2. Application property. After long term of running, silicon rubber core can be easily got distorted or loose, ceramic parts have no such problem. Furthermore, ceramic parts work good against acid, corrosion., hot water and some other tough environment which cannot be made by silicon rubber parts, all of these merits make it enjoy a long service lifetime that support 300,000~500,000 times of running.

Besides of the selection of novelty material, the whole product design is also scientifically and technically sophisticated, please refer to the working principle illustration on product pages.
