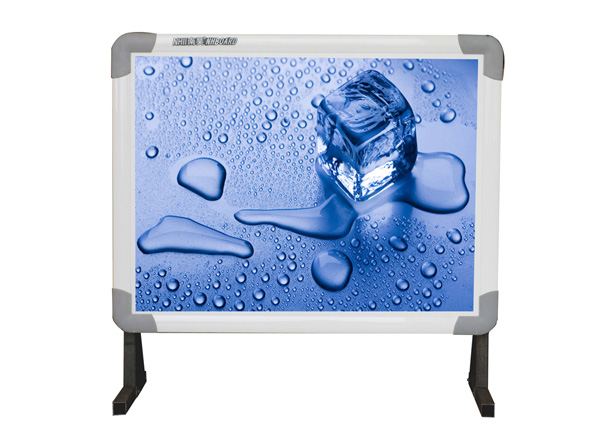

Electromagnetic Whiteboard(egu40)

electromagnetic whiteboard specification
electronic whiteboard specification

1.Model:
EGU40

2. Screen Size diagonal (inch):
40

3. Net Weight(Kg):
7

4. Gross Weight (kg):
13

5.Whiteboard Dimension (mm):
880*680*25

6. Package Dimension (mm):
990*790*150

7. Orientation:
5-point /9-point

8.Induction Height:
1cm

9. Working Principle:
Electromagnetic Induction

10. Projection Ratio:
4:3

11. Attachment Accessories:
2-pc electromagetic pen, 10-meter USB line, 1-set Hanging-to-wall Accessories, 1-pc Software Installation CD.

12. Transmission Interface:
USB

13.Opearating System:
windows98/2000/2003/xp/vista

14.Output Power:
≤1w

15.Working Style:
Control model/window model/annotation model

16. Power Supply Model:
USB power supply without any external power supply

17.Product Warranty:
5 years

18.Working Temperature:
-10°C-50°C

19.Storage Temperature:
-20°C-60°C

Face of the Whiteboard:
　

Adopting the advanced waterproof and anti-abrasion board materials with a high definition displaying facility, you can use the general cleanser or alcohol to clean the whiteboard

Main Founction.
　

1. Writing function:
Users can choose and write freely.

2. Editing function:
Users can modify the ideas easily with copy, paste, eraser and etc.

3. Screen function:
Users can utilize the curtain, focus lamp, camera and recorder to attract audiences.

4.The meaning of each letter and number.
(1) E:Electromagnetic induction.

(2) G:The panel of whiteboard is good.

(3) N:Normal, there is a normal film on the whiteboard on which you can not write directly with ink pen.

(4) U:Upscale, there is an upscale film on the whiteboard on which you can write with an ink pen and the writing can be cleaned by a cleanly damp cloth.

(5) 40/72/82/92/100:The size and diagonal of the whiteboard.
