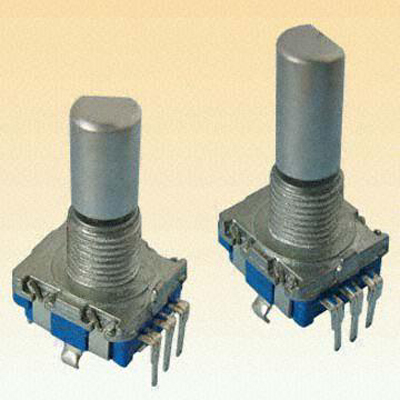

ES 18 for Logic Position Encoder Series
ES 18 for Logic Position Encoder Series, EC11Item Code / Model Number:
EC11
ES 18 for Logic Position Encoder Series
- Mechanical Specifications:
- Total Rotational Angle: 360 degrees (endless)
- Operating Torque Force: 30-200gf cm (At 5-35 deg. C)
- Push-Pull Strength: Equal or Greater than 0.51kgf cm
- Operating Temperature Range: -10 to +75 deg. C
- Rotational Life: 30,000 cycles min
- Insulation Resistance: 50VDC 50Mohm
- Dielectric Strength: 50VAC, 1 minute
- Contact Resistance First Period: 100M ohm;
- After Used: 200Mohm
- ES 18 Characteristics: Waterproof Electrical Specifications:
- Power Rating: EC11: 5VDC, 10mA
- Insulation Resistance: EC11: Equal or Less than 100Mohm at 300VDC 1 minute
- Withstanding Voltage: EC11: 16VDC, 10mA
- Switch Contact Resistance: First Period/100Mohm; After used/200Mohm Specifications:
- Voltage Rating (V): 5
- Current Rating (mA): 10
- Insulation Resistance (Ohm): 100000000
- Rotation Angle (degree): 360
- Detent Force: 20 gf.cm to 200 gf.cm
- Rotation Life: 1 Million Cycles
- Operating Temperature Range (Deg C) (oC): -10 to 75
- Place of Origin:
- China
