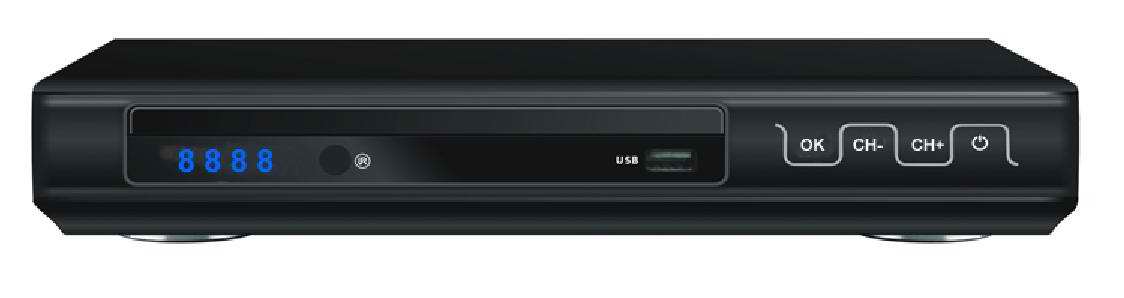

Sell HD DVB-T STB
Sell HD DVB-T STBContinuous Selling Item
Sell HD DVB-T STB
HD DVB-T,
TWO SCART or RCA ,
With display optional,
with USB PVR,
with HDMI
Fully MPEG-1/2/3/MPEG-4,H.264 and DVB-T compliant
HDMI interface(576i,576p,720p,1080i)
EPG for enhanced program information
PAL/NTSC auto switch
Teletext
Two scart
Auto/Manual scan
L/R audio output
Full function remote control
Parental control
Timer
LED display as optional
USB PVR
Input/Output Sockets:
• HDMI V1.3 output
• Composite video output
• SPDIF Coaxial digital audio output
• Full Scart output (optional)
• DVB-T RF antenna input
Technical parameters:
• Power consumption: 18W
• Power Source: ~100-250V
Audio Output:
• Analogue:2.0+0-1.0Vrms
• Digital:0.5 ± 0.1 Vp-p(Coaxial)
• Max sampling rate:24bit/192KHz
• Frequence Response: 20Hz-20KHz( at 1KHz 0 dB)
• Signal/noise Ratio(Audio):≥90 dB( at 1KHz 0 dB)
• Distortion(Audio):≤-60 dB ( at 1KHz 0dB)
• Channel Separation 1KHz: ≥80 dB(Mixed Output)
• Dynamic Range: ≥80 dB
Video Output:
• Composite:1.0±0.2Vp-p
• Load impedance: 75Ω, imbalance, negative polarity
• Max Resolution: 1080i(HDMI output)
• RGB:700±140mV p-p, 75Ω
TWO SCART or RCA ,
With display optional,
with USB PVR,
with HDMI
Fully MPEG-1/2/3/MPEG-4,H.264 and DVB-T compliant
HDMI interface(576i,576p,720p,1080i)
EPG for enhanced program information
PAL/NTSC auto switch
Teletext
Two scart
Auto/Manual scan
L/R audio output
Full function remote control
Parental control
Timer
LED display as optional
USB PVR
Input/Output Sockets:
• HDMI V1.3 output
• Composite video output
• SPDIF Coaxial digital audio output
• Full Scart output (optional)
• DVB-T RF antenna input
Technical parameters:
• Power consumption: 18W
• Power Source: ~100-250V
Audio Output:
• Analogue:2.0+0-1.0Vrms
• Digital:0.5 ± 0.1 Vp-p(Coaxial)
• Max sampling rate:24bit/192KHz
• Frequence Response: 20Hz-20KHz( at 1KHz 0 dB)
• Signal/noise Ratio(Audio):≥90 dB( at 1KHz 0 dB)
• Distortion(Audio):≤-60 dB ( at 1KHz 0dB)
• Channel Separation 1KHz: ≥80 dB(Mixed Output)
• Dynamic Range: ≥80 dB
Video Output:
• Composite:1.0±0.2Vp-p
• Load impedance: 75Ω, imbalance, negative polarity
• Max Resolution: 1080i(HDMI output)
• RGB:700±140mV p-p, 75Ω
- Place of Origin:
- SHENZHEN
- Brand:
- TXC
- Unit Price:
- USD 27.5
- Port:
- FOB SHENZHEN
- Packing:
- GIFT
- Payment Terms:
- ;T/T
- Delivery Time:
- 25
- Min Order Quantity:
- 1000PCS
- Standard / Certificates:
- CE
