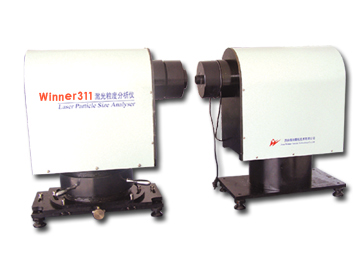

Spray Laser Particle Size Analyzer

model Winner311 Winner312 Winner313 Winner316
characteristic Desktop products to apply to the measurement of small aerosol spray products Separated style products applying to the larger droplet size, broad circumstances. Well used in the fire, dust mist, spray granulation, pesticides, fuel nozzle mist, and other fields. Separated style products applying to the larger droplet size, broad circumstances. Well used in the fire, dust mist, spray granulation, pesticides, fuel nozzle mist, and other fields. New designed for the special needs of
Larger droplet size, such as in the range between 5-2000 microns, spray field 1-10 meters in width.
laser He-Ne / 632.8nm/ 3mW/ 2000h Green solid-state laser / 532nm / 40mW
power adjustable
Channels
NO 32 32 32 75
test specification 1-120μm 4.6-323μm 15--711μm 5-2000μm
Test principle Fraunhofer diffraction
Inversion mode Unconstrained fitting + R-R distribution
the length of the measuring District 60mm 1m-10m
X50Repeatability error <3%
X50Accuracy error <3%
Lens protection Labyrinth style double-gas screen
Sampling methods Out-opening
size 710×220×320mm 470×220×520mm×2 550×220×520mm×2
weight 5kg 37+23kg 45+23kg
power 220V 50Hz
communication RS232/USB
Software operating environment Windows2000/XP
Output Particle size distribution, tables, feature size, SMD
