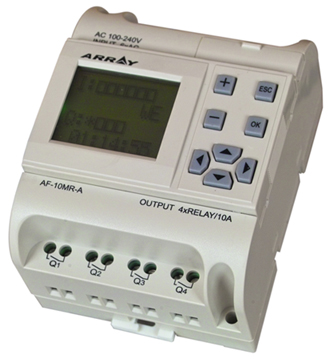

FAB Intelligent Controller series AF-10MR-A
FAB Intelligent Controller series AF-10MR-AItem Code / Model Number:
Description:
FAB is a new type of programmable controller,which is programmed by the use of a Function Block Diagram.The programming of FAB is simpler and easier to learn than that of a conventional PLC.The series can implement function like telephone-control,voice alarm,information,and autodialing.Now FABs are being widely used in many fields such as industry,commerce,mining,agriculture,home automation etc.
Operation temperature:-20-70 Timers :127
Storage/Transportation :-40-70 Counters :127
Protection:IP20 Function blocks : 127
Interference Regulation:EN55011(B Class) RTC time intervals:127
RTC accuracy: MAX ±5S/day Storage capacity:64K
Certificate:CE Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation Dimensions90*71*58(Unit:mm )
Power supply
Rated voltage:AC14-20V/DC12/24V Main voltage operation range:AC12-24V/DC10-28V
(Output full-load):Typical 3W AC/DC24V consumption: Typical 125mA
Digital input
Signal 0:DC 0-5V Input current:<0.2mA
Signal 1:AC12-24V/DC 10-24V Input current:<1mA
Digital output
Output type: Relay output Wiring insulation: Yes
Points per set:1 Continuous current max value:MAX 10A
Switch frequency
Mechanism: 10Hz Resistor load: 2Hz
Inductive load: 0.5Hz
FAB is a new type of programmable controller,which is programmed by the use of a Function Block Diagram.The programming of FAB is simpler and easier to learn than that of a conventional PLC.The series can implement function like telephone-control,voice alarm,information,and autodialing.Now FABs are being widely used in many fields such as industry,commerce,mining,agriculture,home automation etc.
Operation temperature:-20-70 Timers :127
Storage/Transportation :-40-70 Counters :127
Protection:IP20 Function blocks : 127
Interference Regulation:EN55011(B Class) RTC time intervals:127
RTC accuracy: MAX ±5S/day Storage capacity:64K
Certificate:CE Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation Dimensions90*71*58(Unit:mm )
Power supply
Rated voltage:AC14-20V/DC12/24V Main voltage operation range:AC12-24V/DC10-28V
(Output full-load):Typical 3W AC/DC24V consumption: Typical 125mA
Digital input
Signal 0:DC 0-5V Input current:<0.2mA
Signal 1:AC12-24V/DC 10-24V Input current:<1mA
Digital output
Output type: Relay output Wiring insulation: Yes
Points per set:1 Continuous current max value:MAX 10A
Switch frequency
Mechanism: 10Hz Resistor load: 2Hz
Inductive load: 0.5Hz
- Place of Origin:
- Taiwan
- Brand:
- ARRAY
- Payment Terms:
- T/T
- Delivery Time:
- 3 days
- Min Order Quantity:
- 1
- Standard / Certificates:
- IS9000
- Keywords:
- fbd programming, removable panel with lcd, fab-scada function
