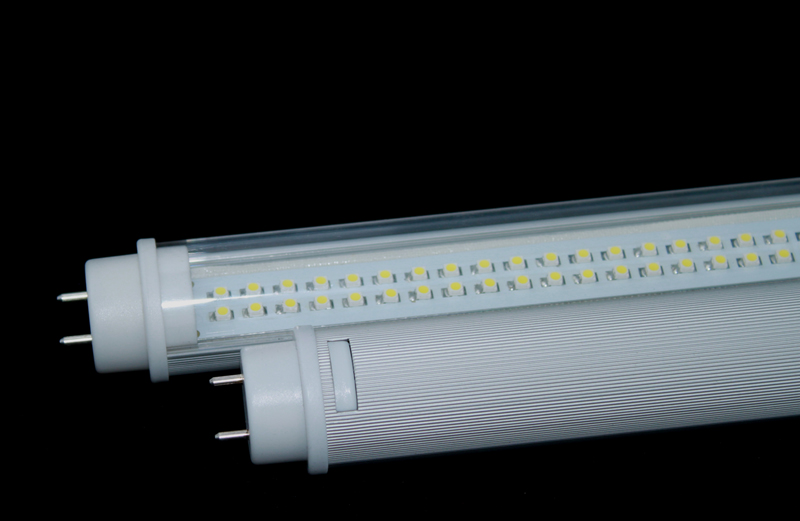

Led Tube 801 Series
Led Tube 801 Series, LED TUBE 801 SERIESItem Code / Model Number:
LED TUBE 801 SERIES
Led Tube 801 Series
Tube length: 600mm, 900mm, 1200mm, 1500mm, 1800mm, 2000mm.
Input voltage: AC85~265V, 50~60Hz.
Tube material: aluminum & transparent PC; frosted PC.
Power: 8W, 10W, 13W , 14W, 16W, 19W, 21W, 23W, 28W, 38W.
Equal to traditional fluorescent tube: 20W, 25W, 30W, 35W, 40W, 48W, 50W, 60W, 70W, 95W.
LED type: SMD: 3528/5050/F5 hat lamp.
Single LED luminance: 6.0~7.0lm.
Lightning protection: enabled.
Aluminum alloy shell: with radiator panels.
Copper needle: solid copper bar with silver-plated contact surface, molding on the lamp base.
Structure: snap-in type: no need screw or glue; insert screw type: PCB board and aluminum spliced by heat pads。
Heat conduction rate: can export 90% of the heat with heat pads.
Approval passed: CE, RoHS, FCC, PSE.
In pending: COC, ETL.
Input voltage: AC85~265V, 50~60Hz.
Tube material: aluminum & transparent PC; frosted PC.
Power: 8W, 10W, 13W , 14W, 16W, 19W, 21W, 23W, 28W, 38W.
Equal to traditional fluorescent tube: 20W, 25W, 30W, 35W, 40W, 48W, 50W, 60W, 70W, 95W.
LED type: SMD: 3528/5050/F5 hat lamp.
Single LED luminance: 6.0~7.0lm.
Lightning protection: enabled.
Aluminum alloy shell: with radiator panels.
Copper needle: solid copper bar with silver-plated contact surface, molding on the lamp base.
Structure: snap-in type: no need screw or glue; insert screw type: PCB board and aluminum spliced by heat pads。
Heat conduction rate: can export 90% of the heat with heat pads.
Approval passed: CE, RoHS, FCC, PSE.
In pending: COC, ETL.
- Place of Origin:
- China
- Brand:
- Iplus
- Unit Price:
- USD 23
- Price Terms:
- FOB Shenzhen
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1000
- Standard / Certificates:
- CE,ROHS,FCC,PSE,COC,ETL
- Keywords:
- led tube, tube, led
