Sodium Naphthalene Formaldehyde
Sodium Naphthalene Formaldehyde, Concrete Admixture-SNFItem Code / Model Number:
Concrete Admixture-SNF
Sodium Naphthalene Formaldehyde
Description

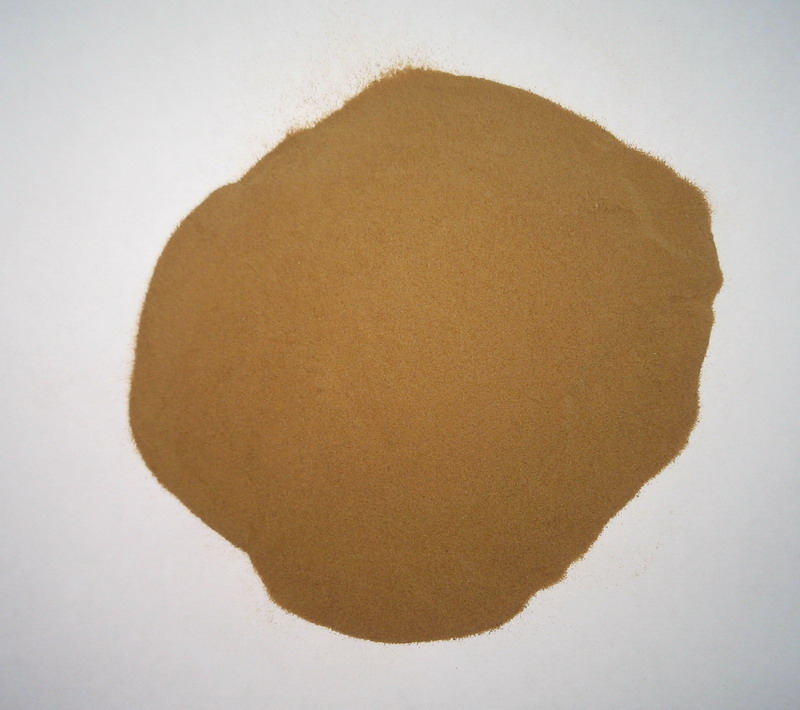

Sodium Naphthalene Formaldehyde(SNF-5) is a member of naphthalene based high range water reducer, Main ingredient is β-naphthyl sulfonate formaldehyde condensate, sodium sulfate≤5.0%.
Homogeneity indexes:
Testing Item Total Solid Fineness 0.315mm residue on sieve % PH Value Sodium Sulfate % Liquidity of Cement Paste mm
Enterprise Standard ≥92 ≤5 7-9 ≤5.0 ≥240
Note: standard blend dosage: 0.75% for powder (as cement amount)
Performance indexes of concrete mixed with SNF-5:
Inspection Items Inspection Criteria Actual Results
First Grade Qualified
Water Reducing Rate (%, >) 12 10 20
Ratio of Bleeding Rate(%,<) 90 95 15
Air content(%) <3.0 <4.0 2.0
Diffrence of Set Time (min) Intial -90~+120 -55
Final -42
Ratio of compressive strength(%) 1d >140>130 156
3d >130 >120 152
7d >125>115 146
28d >120 >110 138
Ratio of Shrinkage (%) 90d <135 82
Steel-bar Corrosion None None
Dosage:
Dosage rates vary depending upon the cement chemistry, amount of plasticity and/or water reduction desired. Recommended dosage range for SNF-5 is 0.5~1.0% of cement. It is highly recommended that trial mixes be prepared to determine the optimum dosage for your specific performance requirements.
Package and Ship:
Description: Woven fabric bag with plastic liner
Net weight: 25kg / 50kg / 750kg / 875Kg....
As per customer requirment
Description: Put some bags in one pallet
Description: 26MT for 40'FCL
Technical Service
A trained representative is available to assist in the preparation of specifications, and the resolution of concrete problems in the field.
Sodium Naphthalene Formaldehyde(SNF-5) is a member of naphthalene based high range water reducer, Main ingredient is β-naphthyl sulfonate formaldehyde condensate, sodium sulfate≤5.0%.
Homogeneity indexes:
Testing Item Total Solid Fineness 0.315mm residue on sieve % PH Value Sodium Sulfate % Liquidity of Cement Paste mm
Enterprise Standard ≥92 ≤5 7-9 ≤5.0 ≥240
Note: standard blend dosage: 0.75% for powder (as cement amount)
Performance indexes of concrete mixed with SNF-5:
Inspection Items Inspection Criteria Actual Results
First Grade Qualified
Water Reducing Rate (%, >) 12 10 20
Ratio of Bleeding Rate(%,<) 90 95 15
Air content(%) <3.0 <4.0 2.0
Diffrence of Set Time (min) Intial -90~+120 -55
Final -42
Ratio of compressive strength(%) 1d >140>130 156
3d >130 >120 152
7d >125>115 146
28d >120 >110 138
Ratio of Shrinkage (%) 90d <135 82
Steel-bar Corrosion None None
Dosage:
Dosage rates vary depending upon the cement chemistry, amount of plasticity and/or water reduction desired. Recommended dosage range for SNF-5 is 0.5~1.0% of cement. It is highly recommended that trial mixes be prepared to determine the optimum dosage for your specific performance requirements.
Package and Ship:
Description: Woven fabric bag with plastic liner
Net weight: 25kg / 50kg / 750kg / 875Kg....
As per customer requirment
Description: Put some bags in one pallet
Description: 26MT for 40'FCL
Technical Service
A trained representative is available to assist in the preparation of specifications, and the resolution of concrete problems in the field.
- Packing:
- Woven fabric bag with plastic liner Net weight: 25kg / 50kg / 750kg / 875Kg.... As per customer requirment
- Keywords:
- concrete admixture, naphthalene, snf
