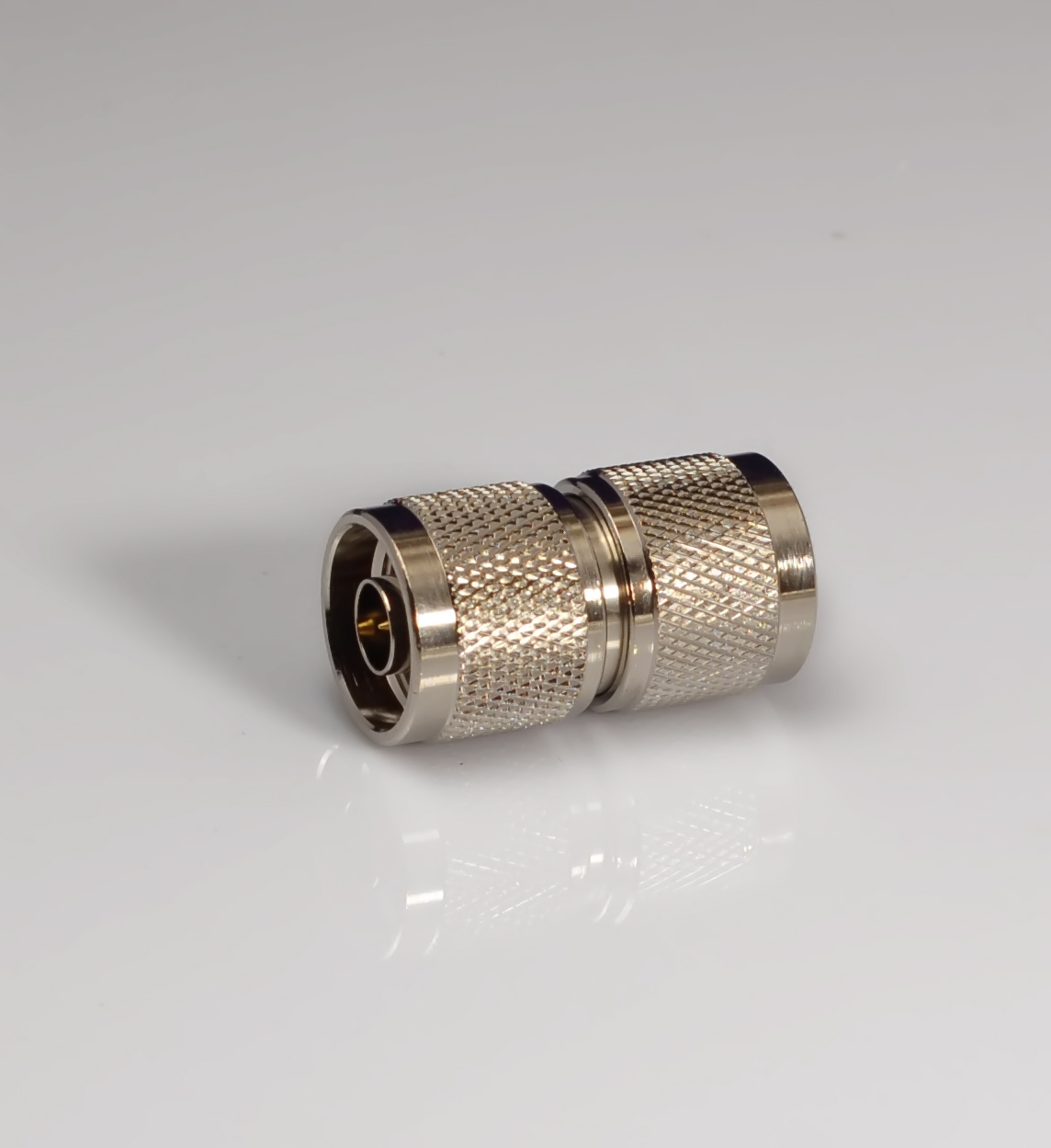

N Connector
N Connector, N-JJItem Code / Model Number:
N-JJ
N Connector
N series connector is a kind of threaded connection with low power. It widely applies to radio equipments and instruments for connecting RF coaxial cables. It can exchange with the international like product.
Electrical Characteristics:
Characteristic Impedance: 50Ω
Frequency Range: 0-11GHz
Contact Resistance:
Inner conductor: ≤1.0mΩ
Out conductor: ≤0.2 mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.30
Durability: 500 cycles
Material and Finishing:
Center Contact:
Pin-------brass, gold or silver plated
Jack------Phosphor bronze or beryllium bronze, gold or silver plated
Body and other metal parts: brass, nickel or ternary alloy plated
Insulator: PTFE
Gasket: Silicone Rubber
Electrical Characteristics:
Characteristic Impedance: 50Ω
Frequency Range: 0-11GHz
Contact Resistance:
Inner conductor: ≤1.0mΩ
Out conductor: ≤0.2 mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.30
Durability: 500 cycles
Material and Finishing:
Center Contact:
Pin-------brass, gold or silver plated
Jack------Phosphor bronze or beryllium bronze, gold or silver plated
Body and other metal parts: brass, nickel or ternary alloy plated
Insulator: PTFE
Gasket: Silicone Rubber
- Place of Origin:
- China
- Payment Terms:
- L/C;T/T;Cash
- Min Order Quantity:
- 200 pcs
- Standard / Certificates:
- ISO9001:2000
- Keywords:
- rf coaxial connector, rf connector, connector
