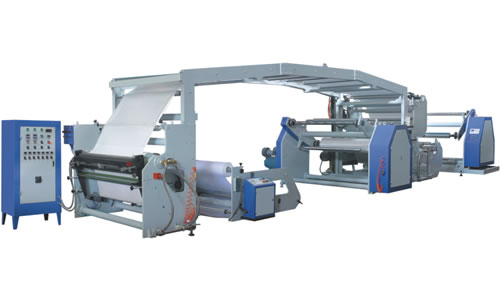

Rth High Speed Coating Machine

Usable range:

This machine mainly used in pressure sensitive adhesive coating, such as self-adhesive label, heat sensitive label, adhesive tape, advertisement jet printing material etc.

Main characteristic:

1.This machine adopted high precision alloy steel spray head; it made users get optimal coating result.

2.It has double positions rewind and unwind, and collocate pneumatic device, it can continue to filling material when the machine stopped.

3.This machine is extending distance between coating device and compound; it suits some material that can’t bear high temperature.


Specification:

Model RTH
Machine Length 12000mm
Machine Height 2600mm
Coating width 400-2500mm
Coating weight 10-200g/m2
Coating speed 150m/min
Unwind Dia. 1000mm
Rewind Dia. 1000mm
Correction device 1set
