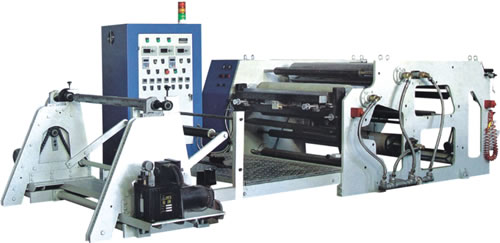

Rt Hot Melt Coating Machine

Usable range:

This machine is suitable for producing double-side tapes, duct tapes, double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu-foil tapes, fabric tapes, shoes materials and medicine dressing tapes etc.

Main characteristic:

1.This machine adopts intelligent PID temperature control system, it can control the temperature exactly and the error is within 1℃.

2.An AC converter control is used for both speed and quantity of glue feeing for which both automatic synchronous tracking and manual control are available.

3.The glue melting oven is coated with the antis ticking layer, efficacious prevent the hot melt adhesive against carbonization.

4.This machine have a precision metric gear, it makes glue output steady.

5.The high precision of alloy steel spray head has made users get high-quality coating result.

6.High-efficiency cooling device insure the applicable range of the basic materials.


Specification:

Model RT
Machine Length 4800mm
Machine Height 1350mm
Coating width 400-2500mm
Coating weight 10-200g/m2
Coating speed 50m/min
Unwind Dia. 1000mm
Rewind Dia. 700mm
Correction device 1set
