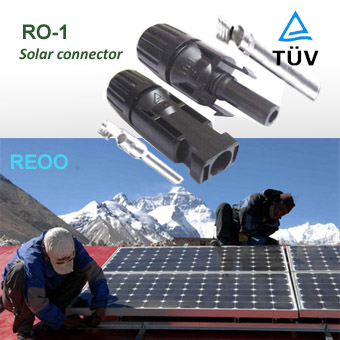

Mc4 Solar Connector
Mc4 Solar Connector, 85367000Item Code / Model Number:
85367000
Mc4 Solar Connector
MC4 solar connector
1.Water proof and dust proof
2.Simple,quick installation
3.compatible with MC4 solar connector
4.competitive price
main feature:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock equipment of male and female points enable connection more easy and reliable.
3.Popular figure suit most of field installation
4.Simple on-site processing
5.Mating safety provided by keyed housings
6.Mutiple plugging and unplugging cycles
7.Accoomodates PV cable with deferent insulation diamaters
8.High current carrying capacity
Technical data:
Mode: RO-1
Insulation material: PPO
Rated current: 30A
Rated voltage: 1000V
Test voltage: 6KV(50Hz,1Min)
Contact resistance:5mΩ
Protection degree: IP67
Safe class: Ⅱ
Flame class:UL94-V0
Insertion force: ≤50N
Withdarawal force: ≥50N
Ambient temperature range: -40℃~+90℃
Suitable cable: 2.5~6.0mm2 AWG14/12/10
Pin dimensions: φ4.0mm
Package:
1.1000pairs in a carton
2.carton dimension:38cmx33cmx47cm
3.net weight:22kg
4.Gross weight:22.9kg
1.Water proof and dust proof
2.Simple,quick installation
3.compatible with MC4 solar connector
4.competitive price
main feature:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock equipment of male and female points enable connection more easy and reliable.
3.Popular figure suit most of field installation
4.Simple on-site processing
5.Mating safety provided by keyed housings
6.Mutiple plugging and unplugging cycles
7.Accoomodates PV cable with deferent insulation diamaters
8.High current carrying capacity
Technical data:
Mode: RO-1
Insulation material: PPO
Rated current: 30A
Rated voltage: 1000V
Test voltage: 6KV(50Hz,1Min)
Contact resistance:5mΩ
Protection degree: IP67
Safe class: Ⅱ
Flame class:UL94-V0
Insertion force: ≤50N
Withdarawal force: ≥50N
Ambient temperature range: -40℃~+90℃
Suitable cable: 2.5~6.0mm2 AWG14/12/10
Pin dimensions: φ4.0mm
Package:
1.1000pairs in a carton
2.carton dimension:38cmx33cmx47cm
3.net weight:22kg
4.Gross weight:22.9kg
- Place of Origin:
- China
- Brand:
- Reoo
- Unit Price:
- USD 0~1.50
- Price Terms:
- FOB Shanghai
- Packing:
- carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 3-7 days
- Min Order Quantity:
- 100sets
- Standard / Certificates:
- TUV
- Keywords:
- mc4 solar connector
