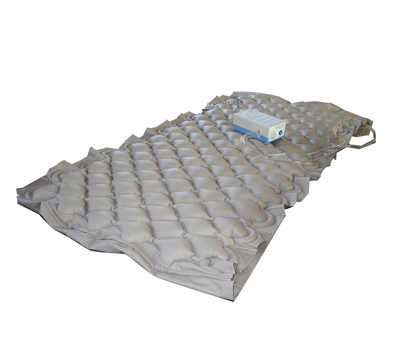

Bubble Mattress

This therapy system is designed for those with superficial established pressure sore or with existing tissue damaged, or assessed to be a low risk or be at medium risk , even at very high risk of pressure sore development. It can provide excellent pressure reduction through continuous movement . It has been proven clinically beneficial and suitable for all healthcare environment.


Block Wave-Motion Type
(1) Materials:PVC film;
(2) Thickness:0.30mm or 0.40mm(can be selected);
(3) Dimension of the mattress after gas charging: length:1950mm(not include the cloth at the two ends),width:850mm;
(4) Quantity of the spheres after gas charging::140,height of the sphere:6cm;
(5) Voltage:220V 50Hz or 110V 60Hz(can be selected);
(6) Power:≤10W;
(7) Time of the periodic wave:6min or 8min, has anair renewal(can be selected);
(8) Exhaust volume of the charging pump:idling≥7L/min,load≥3.5L/min;
(9)Operating pressure range:10~16Kpa;
(10)Remarks:every set of product include a tube of glue for mending and a piece of PVC material.
