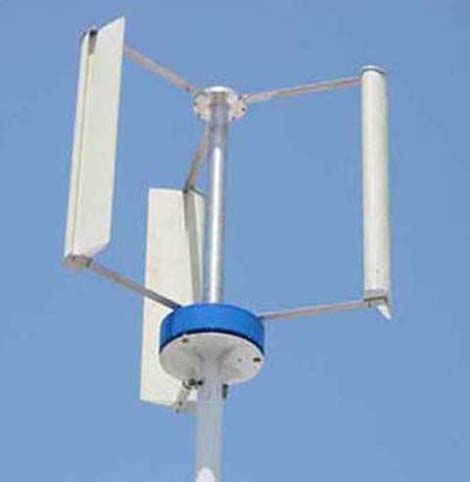

Vertical Axis Wind Turbine

Specifications:
1.ISO,CE certification
2.High generation efficiency
3.Simple installation
4.Low start-up wind speed

Wind Turbine specification:
Vertical Wind Turbine -- VH Model 500W to 5KW
Item/Model CTV-500W CTV-1KW CTV-2KW CTV-3KW CTV-5KW
Rated Power (W) 500 1000 2000 3000 5000
Rotor Diameter (m) 1.4 1.75 2.6 3.5 4
Blade Length (m) 1.5 1.8 2.6 3.8 4
Setup Speed (m/s) 2 2.5 2.5 2.5 3
Rated Speed (m/s) 8 8 10 10 10
Working Speed (m/s) 2.5–25 3–25 3–25 3–25 3.5–25
OUT DC off grid (v) 24 48 96 220 380
Battery off grid 12V150AH*2 12V150AH*4 12V150AH*8 12V150AH*18 12V150AH*30

OUT DC on grid (v) \ 150-450 200-450 200-450 200-780
Height of Tower (m) 6 6 6 8 9
Upper Weight (kg) 67 95 188 217 605
Generator Type 3 phase permanent magnet,direct driven
Charge controller with Automatic Electrical Brake
Pure Sine Wave Inverter 110/220/230V,50/60Hz
Notes:
For the power curves and details,please feel free to contact me.
Our CE EMC certification number:1826
