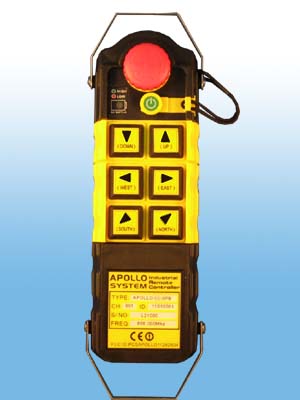

industrial radio remote control APOLLO C1-6PB

System Features
1. Modular design allows for easy upgrade to different models, unnecessary prime cost be reduced.
2. European standard switches inside, high sensitivity, long life with gold-plated connectors.
3. Anti-water/shock/dust PC case,suitable for the worst environment with international standard EMS button on the top.
4.Internal antenna design both in transmitter & receiver, aviod the possibility of brake.

TRANSMITTER SPEC :

Transmitting range：100m(standard)
Frequency:FM868Mhz(20CH) FM433Mhz(20CH)
Operation power :<10mW
antenna: internal type impedance 50 ohm
operation temperature :0℃~+75℃
source voltage :1.5V(AA)*4ps
enclosure : IP65
consumption:<10mW
security code :256sets
weight : 515g
Dimension:Transmitter: 215 X70X50mm

RECEIVER STEC

HF sensitibity:-119dBm
Frequency range:FM868Mhz(20CH) FM433Mhz(20CH)
antenna : internal type impedance 50 ohm
operation temperature: -10 OC～+75 OC
relay:10A, 250VAC
source voltage: AC110V/AC220V/AC380V/AC415V,50/60Hz
Enclosure:IP65
Consumption :< 12W
Weight : 860g
Dimension Receiver 204 X 121 X 65 mm
